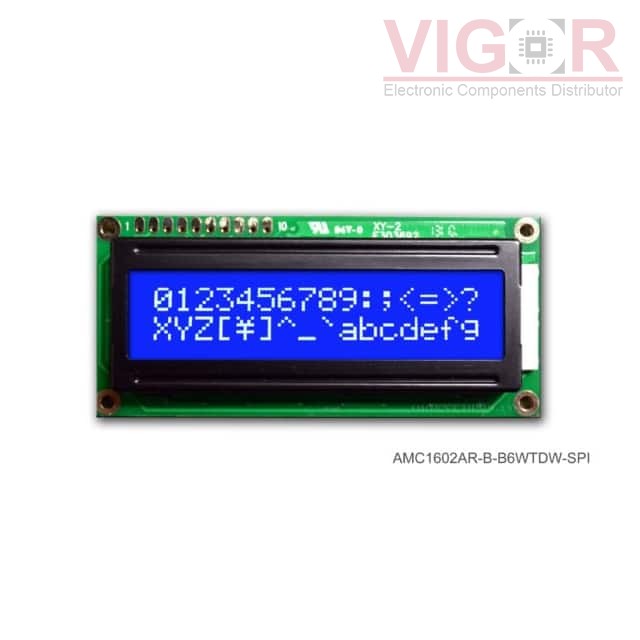

AMC1602AR-B-B6WTDW-SPI

Part No :: AMC1602AR-B-B6WTDW-SPI

Manufacturer: Orient Display

VIGOR # :: 1666800

Description: COB CHAR 16X2 BLUE TRANSM SPI

Catalog: Display Modules - LCD, OLED Character and Numeric

DataSheet: AMC1602AR-B-B6WTDW-SPI PDF

Country of origin: -

Date code: -

AMC1602AR-B-B6WTDW-SPI Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	32
Display Format:	16 x 2
Character Format:	5 x 8 Dots
Display Type:	STN - Super-Twisted Nematic
Display Mode:	Transmissive
Character Size:	5.55mm H x 2.95mm W
Outline L x W x H:	80.00mm x 36.00mm x 14.00mm
Viewing Area:	64.50mm L x 15.50mm W
Backlight:	LED - White
Voltage - Supply:	4.5V ~ 5.5V
Dot Size:	0.55mm W x 0.65mm H
Interface:	SPI
Controller Type:	AC780S
Operating Temperature:	-20°C ~ 70°C
Text Color:	White
Background Color:	Blue

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 32

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.49~~	~~$7.49~~

Current price of AMC1602AR-B-B6WTDW-SPI is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
