CDQA56R2WF-A

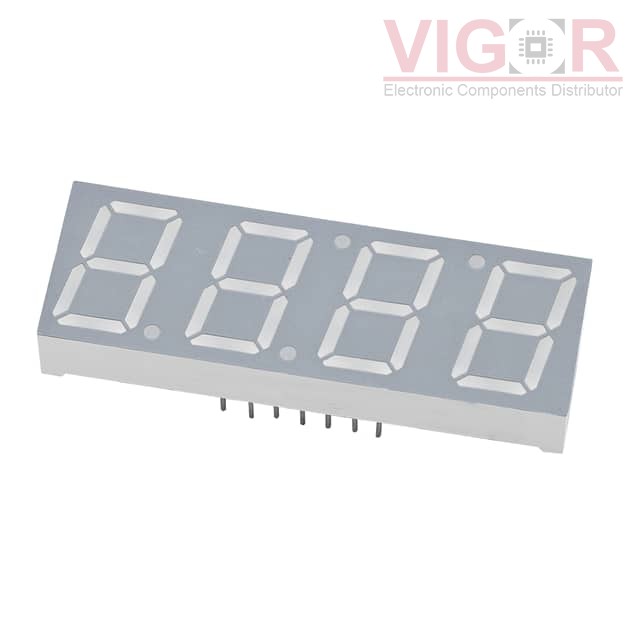

Image is for reference,
please contact us to get the real picture

Part No :: CDQA56R2WF-A

Manufacturer: ChromeLED

Description: DISPLAY 7SEG 0.56" QUAD RED 12DI

Catalog: Display Modules - LED Character and Numeric

DataSheet: CDQA56R2WF-A PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CDQA56R2WF-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDQA56R2WF-A Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Display Format:	-
Number of Characters:	4
Size / Dimension:	0.673" H x 1.980" W x 0.315" D (17.10mm x 50.40mm x 8.00mm)
Digit/Alpha Size:	0.56" (14.20mm)
Display Type:	7-Segment
Common Pin:	Common Anode
Color:	Red
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	20mA
Millicandela Rating:	30mcd
Wavelength - Peak:	624nm
Power Dissipation (Max):	70mW
Package / Case:	12-DIP
