LR VH9F-P2R1-1-Z

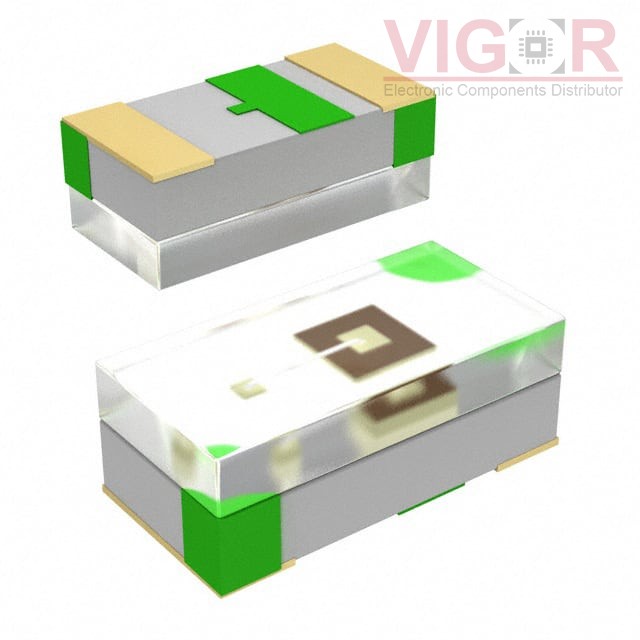

Image is for reference,
please contact us to get the real picture

Part No :: LR VH9F-P2R1-1-Z

Manufacturer: OSRAM Opto Semiconductors, Inc.

Description: LED RED DIFFUSED 0402 R/A SMD

Catalog: LED Indication - Discrete

DataSheet: LR VH9F-P2R1-1-Z PDF

Availability: 20479 pieces

Unit Price: ~~$0.42000~~

Current price of LR VH9F-P2R1-1-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LR VH9F-P2R1-1-Z Specifications

Type	Description
Series:	FIREFLY®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red
Configuration:	Standard
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	98mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	1.00mm x 0.33mm
Voltage - Forward (Vf) (Typ):	2V
Current - Test:	5mA
Viewing Angle:	140°, 165°
Mounting Type:	Surface Mount, Right Angle
Wavelength - Dominant:	625nm
Wavelength - Peak:	632nm
Features:	-
Package / Case:	2-SMD, No Lead
Supplier Device Package:	0402
Size / Dimension:	1.00mm L x 0.55mm W
Height (Max):	0.35mm
