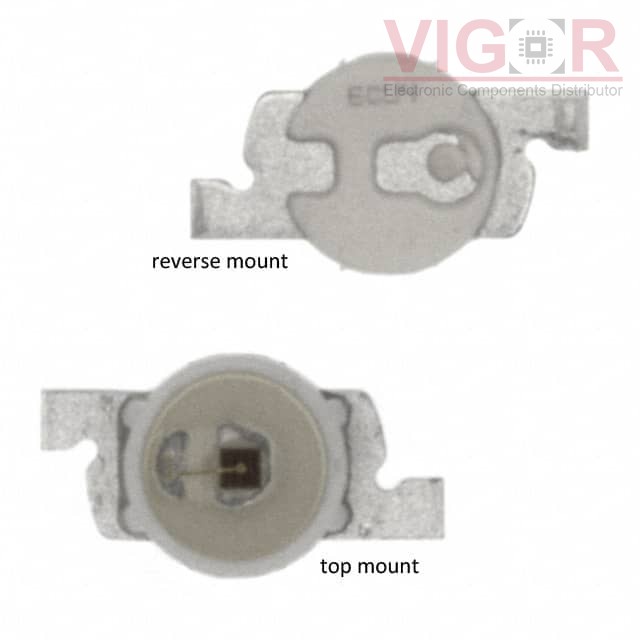

LR P47F-U2AB-1-1-Z

Part No :: LR P47F-U2AB-1-1-Z

Manufacturer: OSRAM Opto Semiconductors, Inc.

VIGOR # :: 1675690

Description: LED RED CLEAR SMD BOTTOM ENTRY

Catalog: LED Indication - Discrete

DataSheet: LR P47F-U2AB-1-1-Z PDF

Current price of LR P47F-U2AB-1-1-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LR P47F-U2AB-1-1-Z Specifications

Type	Description
Series:	PointLED®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red
Configuration:	Standard
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	1180mcd
Lens Style:	Round with Flat Top
Lens Size:	1.60mm Dia
Voltage - Forward (Vf) (Typ):	2.2V
Current - Test:	30mA
Viewing Angle:	120°
Mounting Type:	Surface Mount, Bottom Entry
Wavelength - Dominant:	625nm
Wavelength - Peak:	634nm
Features:	-
Package / Case:	2-SMD, Flat Lead
Supplier Device Package:	SMD
Size / Dimension:	3.40mm L x 1.90mm W
Height (Max):	0.88mm
