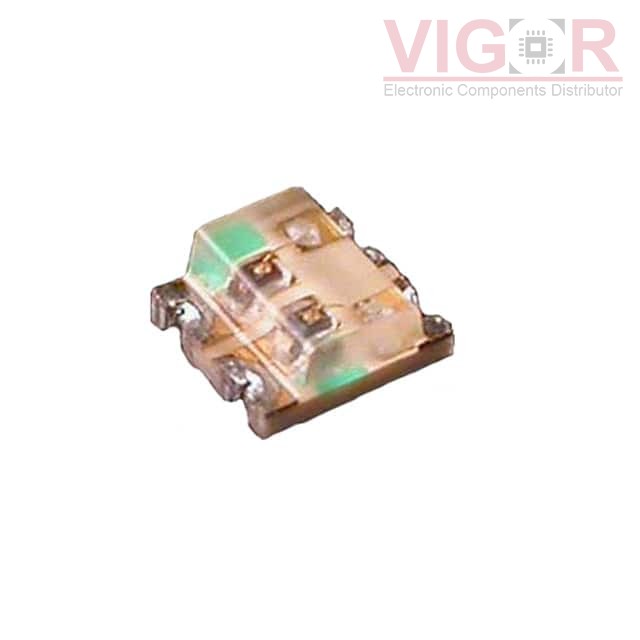

APTB1615ESGC-F01

Part No :: APTB1615ESGC-F01

Manufacturer: Kingbright

VIGOR # :: 1676779

Description: LED GREEN/RED CLEAR CHIP SMD

Catalog: LED Indication - Discrete

DataSheet: APTB1615ESGC-F01 PDF

Country of origin: -

Date code: -

APTB1615ESGC-F01 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Green, Red
Configuration:	Independent
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	12mcd Green, 7mcd Red
Lens Style:	Rectangle with Flat Top
Lens Size:	1.20mm x 1.50mm
Voltage - Forward (Vf) (Typ):	2.2V Green, 2V Red
Current - Test:	20mA Green, 20mA Red
Viewing Angle:	120°
Mounting Type:	Surface Mount
Wavelength - Dominant:	568nm Green, 617nm Red
Wavelength - Peak:	565nm Green, 627nm Red
Features:	-
Package / Case:	0606 (1616 Metric)
Supplier Device Package:	Chip LED
Size / Dimension:	1.60mm L x 1.50mm W
Height (Max):	0.70mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 11039

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.50~~	~~$0.50~~
2000	~~$0.11~~	~~$212.40~~
6000	~~$0.10~~	~~$601.80~~
10000	~~$0.09~~	~~$914.50~~
50000	~~$0.08~~	~~$3 923.50~~
100000	~~$0.08~~	~~$7 670.00~~

Current price of APTB1615ESGC-F01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
