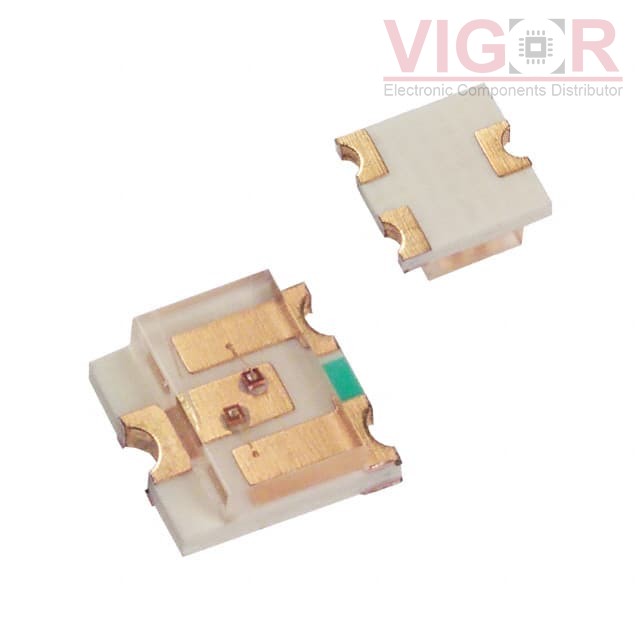

SML-LX15IYC-RP-TR

Part No :: SML-LX15IYC-RP-TR

Manufacturer: Lumex, Inc.

VIGOR # :: 4457074

Description: LED RED/YELLOW CLEAR SOT23 SMD

Catalog: LED Indication - Discrete

DataSheet: SML-LX15IYC-RP-TR PDF

Country of origin: -

Date code: -

SML-LX15IYC-RP-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Color:	Red, Yellow
Configuration:	Common Cathode
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	10mcd Red, 10mcd Yellow
Lens Style:	Rectangle with Flat Top
Lens Size:	2.00mm x 3.00mm
Voltage - Forward (Vf) (Typ):	2V Red, 2.1V Yellow
Current - Test:	20mA Red, 20mA Yellow
Viewing Angle:	140°
Mounting Type:	Surface Mount
Wavelength - Dominant:	-
Wavelength - Peak:	635nm Red, 585nm Yellow
Features:	-
Package / Case:	TO-236, SC-59, SOT-23-3 variant, 3-SMD
Supplier Device Package:	SOT-23
Size / Dimension:	3.00mm L x 3.00mm W
Height (Max):	1.00mm
