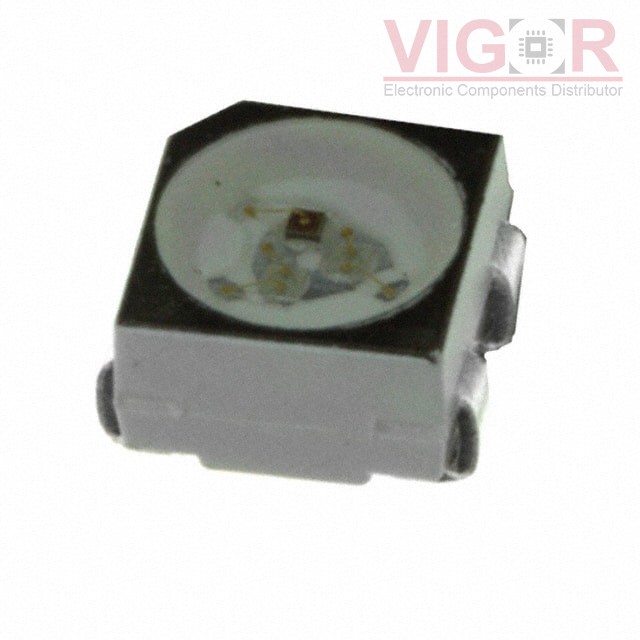

ASMT-QTB0-0AA02

Image is for reference,
please contact us to get the real picture

Part No :: ASMT-QTB0-0AA02

Manufacturer: Broadcom

Description: LED RGB CLEAR 4PLCC SMD

Catalog: LED Indication - Discrete

DataSheet: ASMT-QTB0-0AA02 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ASMT-QTB0-0AA02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ASMT-QTB0-0AA02 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Color:	Red, Green, Blue (RGB)
Configuration:	Common Anode
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	620mcd Red, 1200mcd Green, 280mcd Blue
Lens Style:	Round with Flat Top
Lens Size:	2.90mm Dia
Voltage - Forward (Vf) (Typ):	2.1V Red, 3.2V Green, 3.2V Blue
Current - Test:	20mA Red, 20mA Green, 20mA Blue
Viewing Angle:	120°
Mounting Type:	Surface Mount
Wavelength - Dominant:	621nm Red, 528nm Green, 470nm Blue
Wavelength - Peak:	629nm Red, 521nm Green, 465nm Blue
Features:	-
Package / Case:	4-SMD, J-Lead
Supplier Device Package:	4-PLCC
Size / Dimension:	3.40mm L x 3.20mm W
Height (Max):	2.20mm
