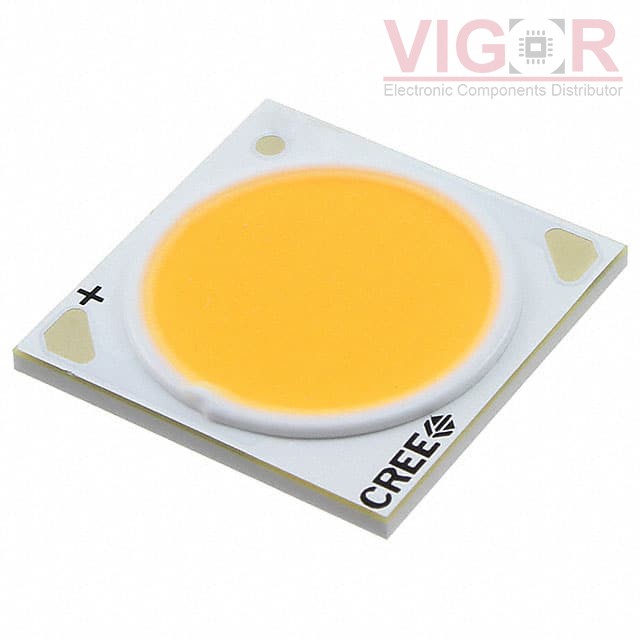

CXA1830-0000-000N0HU250F

Part No :: CXA1830-0000-000N0HU250F

Manufacturer: Cree

VIGOR # :: 1689622

Description: LED COB CXA1830 COOL WHT SQUARE

Catalog: LED Lighting - COBs, Engines, Modules, Strips

DataSheet: CXA1830-0000-000N0HU250F PDF

Country of origin: -

Date code: -

CXA1830-0000-000N0HU250F Specifications

Type	Description
Series:	XLamp® CXA1830
Package:	Tray
Part Status:	Active
Type:	Chip On Board (COB)
Color:	White, Cool
CCT (K):	5000K 4-Step MacAdam Ellipse
Wavelength:	-
Configuration:	Square
Luminous Flux @ Current/Temperature:	3818lm (3680lm ~ 3955lm)
Current - Test:	800mA
Temperature - Test:	85°C
Voltage - Forward (Vf) (Typ):	37V
Lumens/Watt @ Current - Test:	129 lm/W
Current - Max:	1.4A
CRI (Color Rendering Index):	80
Viewing Angle:	115°
Features:	-
Size / Dimension:	17.85mm L x 17.85mm W
Height:	1.70mm
Light Emitting Surface (LES):	14.00mm Dia
Lens Type:	Flat

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 25 - Oct 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.8310~~	~~$5.83~~
100	~~$5.8310~~	~~$583.10~~

Current price of CXA1830-0000-000N0HU250F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
