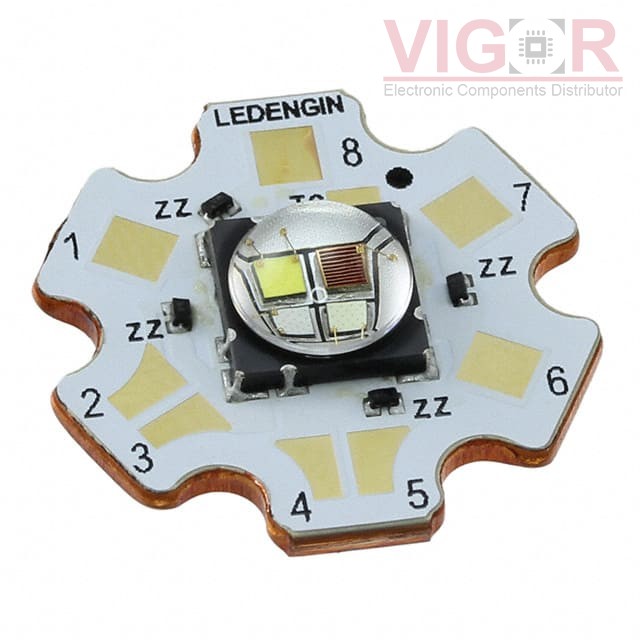

LZ4-V0MD0C-0000

Image is for reference,
please contact us to get the real picture

Part No :: LZ4-V0MD0C-0000

Manufacturer: LED Engin

Description: LED DOME RGBW 4CH CLEAR MCPCB

Catalog: LED Lighting - COBs, Engines, Modules, Strips

DataSheet: LZ4-V0MD0C-0000 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of LZ4-V0MD0C-0000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LZ4-V0MD0C-0000 Specifications

Type	Description
Series:	LZ4
Package:	Tray
Part Status:	Obsolete
Type:	LED Module
Color:	Red, Green, Blue, White - Cool
CCT (K):	6335K
Wavelength:	624nm Red, 525nm Green, 457nm Blue
Configuration:	Starboard
Luminous Flux @ Current/Temperature:	133lm Red, 160lm Green, 33lm Blue, 234lm White
Current - Test:	700mA Red, 700mA Green, 700mA Blue, 700mA White
Temperature - Test:	25°C
Voltage - Forward (Vf) (Typ):	2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test:	76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White
Current - Max:	1A Red, 1A Green, 1A Blue, 1A White
CRI (Color Rendering Index):	75 (Typ)
Viewing Angle:	95°
Features:	-
Size / Dimension:	19.90mm Dia
Height:	5.40mm
Light Emitting Surface (LES):	6.50mm Dia
Lens Type:	Domed

Please confirm the specifications of the products when ordering.
