LR W5SN-JYKY-1-0-700-R18-Z

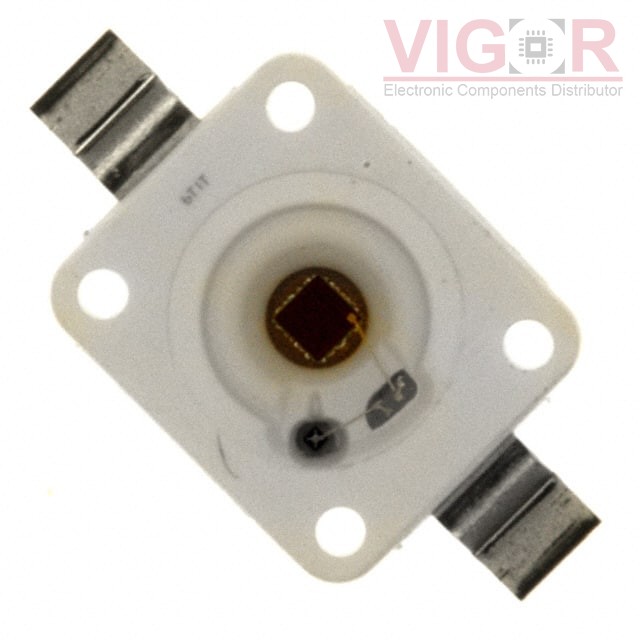

Image is for reference,
please contact us to get the real picture

Part No :: LR W5SN-JYKY-1-0-700-R18-Z

Manufacturer: OSRAM Opto Semiconductors, Inc.

Description: LED PLAT DRAGON 625NM RED SMD

Catalog: LED Lighting - Color

DataSheet: LR W5SN-JYKY-1-0-700-R18-Z PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of LR W5SN-JYKY-1-0-700-R18-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LR W5SN-JYKY-1-0-700-R18-Z Specifications

Type	Description
Series:	Platinum DRAGON
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Color:	Red
Wavelength:	625nm (Typ)
Current - Test:	700mA
Voltage - Forward (Vf) (Typ):	2.45V
Lumens/Watt @ Current - Test:	44 lm/W
Current - Max:	1A
Luminous Flux @ Current/Temperature:	75lm (52lm ~ 97lm)
Temperature - Test:	25°C
Viewing Angle:	120°
Mounting Type:	Surface Mount
Package / Case:	2-SMD, Gull Wing
Supplier Device Package:	SMD
Size / Dimension:	0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max):	0.079" (2.00mm)
