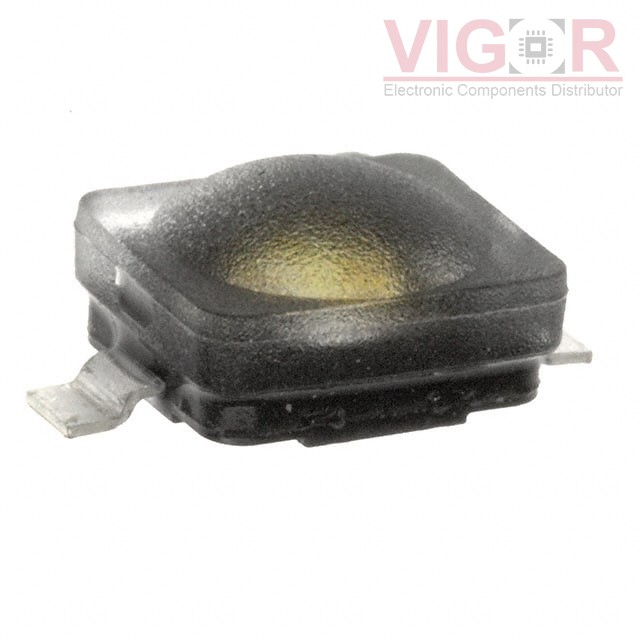

LT W5AP-LYMZ-25-Z

Part No :: LT W5AP-LYMZ-25-Z

Manufacturer: OSRAM Opto Semiconductors, Inc.

VIGOR # :: 4468766

Description: LED DIAMOND DRAGON 528NM TRUE GN

Catalog: LED Lighting - Color

DataSheet: LT W5AP-LYMZ-25-Z PDF

Country of origin: -

Date code: -

LT W5AP-LYMZ-25-Z Specifications

Type	Description
Series:	Diamond Dragon
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Color:	Green
Wavelength:	528nm (513nm ~ 537nm)
Current - Test:	1.4A
Voltage - Forward (Vf) (Typ):	3.5V
Lumens/Watt @ Current - Test:	42 lm/W
Current - Max:	2A
Luminous Flux @ Current/Temperature:	205lm (130lm ~ 280lm)
Temperature - Test:	25°C
Viewing Angle:	140°
Mounting Type:	Surface Mount
Package / Case:	2-SMD, Gull Wing
Supplier Device Package:	SMD
Size / Dimension:	0.303" L x 0.264" W (7.70mm x 6.70mm)
Height - Seated (Max):	0.175" (4.45mm)
