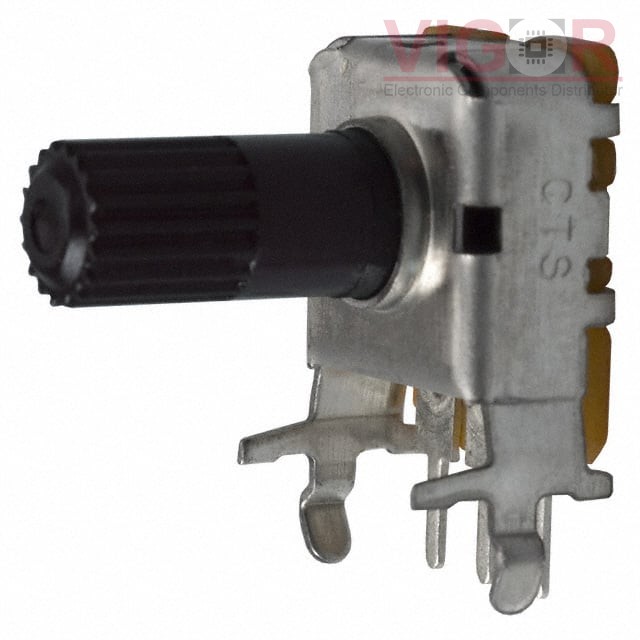

296XD253B1N

Part No :: 296XD253B1N

Manufacturer: CTS Corporation

VIGOR # :: 4450658

Description: POT 25K OHM 0.15W CARBON LINEAR

Catalog: Rotary Potentiometers, Rheostats

DataSheet: 296XD253B1N PDF

Country of origin: -

Date code: -

296XD253B1N Specifications

Type	Description
Series:	296
Package:	Bulk
Part Status:	Obsolete
Resistance (Ohms):	25k
Tolerance:	±20%
Power (Watts):	0.15W
Built in Switch:	None
Number of Turns:	1
Taper:	Linear
Number of Gangs:	1
Adjustment Type:	Side Adjustment
Temperature Coefficient:	-
Rotation:	300°
Resistive Material:	Carbon
Termination Style:	PC Pins, Board Locks
Actuator Type:	Knurled
Actuator Length:	0.539" (13.70mm)
Actuator Diameter:	0.236" (6.00mm)
Bushing Thread:	-
Mounting Type:	Through Hole, Snap In

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 11 - Apr 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 296XD253B1N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EVU-E2AF25B24

POT 20K OHM 1/20W LINEAR

381N10K

POT 10K OHM 1W PLASTIC LINEAR

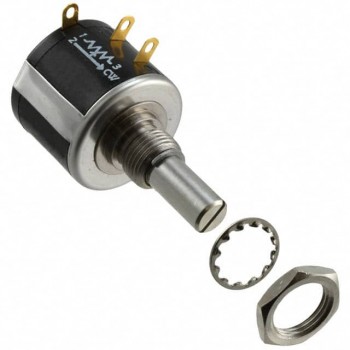

GU5021S26
