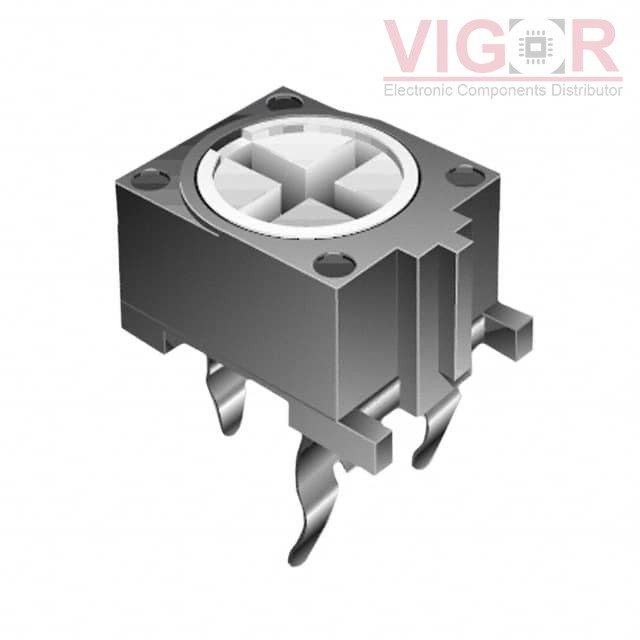

TC76B-1-101

Part No :: TC76B-1-101

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4449169

Description: TRIMMER 100 OHM 0.1W PC PIN SIDE

Catalog: Trimmer Potentiometers

DataSheet: TC76B-1-101 PDF

Country of origin: -

Date code: -

TC76B-1-101 Specifications

Type	Description
Series:	Trimpot® TC76 - Closed Frame
Package:	Bulk
Part Status:	Obsolete
Resistance:	100 Ohms
Power (Watts):	0.1W, 1/10W
Tolerance:	±30%
Temperature Coefficient:	±300ppm/°C
Number of Turns:	1
Adjustment Type:	Side Adjustment
Resistive Material:	Carbon
Mounting Type:	Through Hole
Termination Style:	PC Pins
Size / Dimension:	Rectangular - 0.252" x 0.342" Face x 0.342" H (6.40mm x 8.70mm x 8.70mm)
