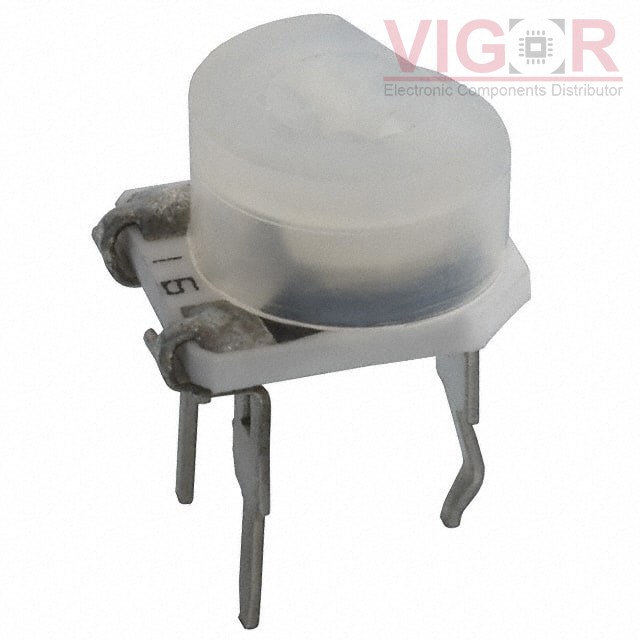

TC86K-1-503

Part No :: TC86K-1-503

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4449194

Description: TRIMMER 50K OHM 0.3W PC PIN SIDE

Catalog: Trimmer Potentiometers

DataSheet: TC86K-1-503 PDF

Country of origin: -

Date code: -

TC86K-1-503 Specifications

Type	Description
Series:	Trimpot® TC86 - Open Frame
Package:	Bulk
Part Status:	Obsolete
Resistance:	50 kOhms
Power (Watts):	0.3W
Tolerance:	±20%
Temperature Coefficient:	±250ppm/°C
Number of Turns:	1
Adjustment Type:	Side Adjustment
Resistive Material:	Cermet
Mounting Type:	Through Hole
Termination Style:	PC Pins
Size / Dimension:	Rectangular - 0.303" x 0.268" Face x 0.446" H (7.70mm x 6.80mm x 11.33mm)
