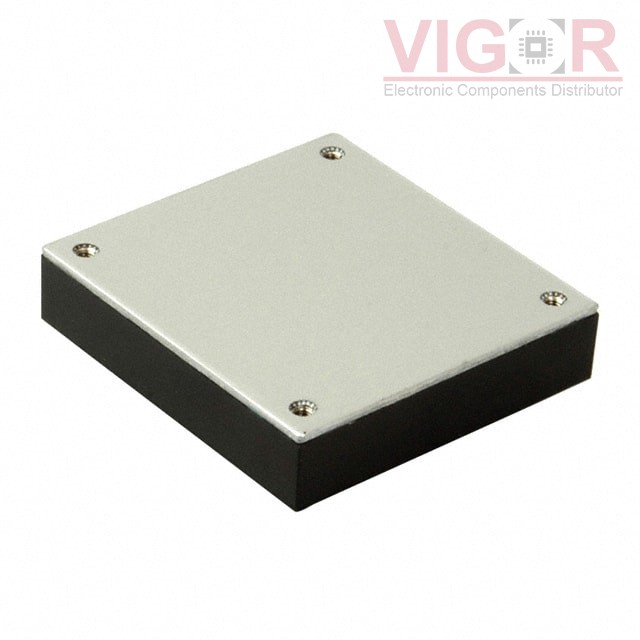

VHB75W-Q24-S3R3

Part No :: VHB75W-Q24-S3R3

Manufacturer: CUI Inc.

VIGOR # :: 4098410

Description: DC DC CONVERTER 3.3V 50W

Catalog: DC DC Converters

DataSheet: VHB75W-Q24-S3R3 PDF

Country of origin: -

Date code: -

VHB75W-Q24-S3R3 Specifications

Type	Description
Series:	VHB75W (75W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	15A
Power (Watts):	50 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	Half Brick
Control Features:	-
Approval Agency:	EN, UL
Standard Number:	55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3

Alternative Products

Part Number	Manufacturer & Description	Compare
CHB75W-24S33N Match 100%	Cincon DC DC CONVERTER 3.3V 50W	VHB75W-Q24-S3R3 vs CHB75W-24S33N
CHB75W-24S33 Match 100%	Cincon DC DC CONVERTER 3.3V 50W	VHB75W-Q24-S3R3 vs CHB75W-24S33
VE-JVY-MY Match 61%	Vicor DC DC CONVERTER 3.3V 33W	VHB75W-Q24-S3R3 vs VE-JVY-MY
VE-JVY-MY-F4 Match 61%	Vicor DC DC CONVERTER 3.3V 33W	VHB75W-Q24-S3R3 vs VE-JVY-MY-F4
VE-JVY-IY-S Match 61%	Vicor DC DC CONVERTER 3.3V 33W	VHB75W-Q24-S3R3 vs VE-JVY-IY-S
VE-JVY-IY-F3 Match 61%	Vicor DC DC CONVERTER 3.3V 33W	VHB75W-Q24-S3R3 vs VE-JVY-IY-F3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 675

Shipped from

HK warehouse

Expected Shipping Date

Nov 06 - Nov 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$83.6780~~	~~$83.68~~
48	~~$83.6780~~	~~$4 016.54~~

Current price of VHB75W-Q24-S3R3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-26M-CY

DC DC CONVERTER 10V 50W

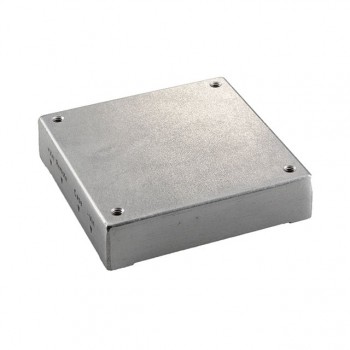

CHB100W-24S05N
