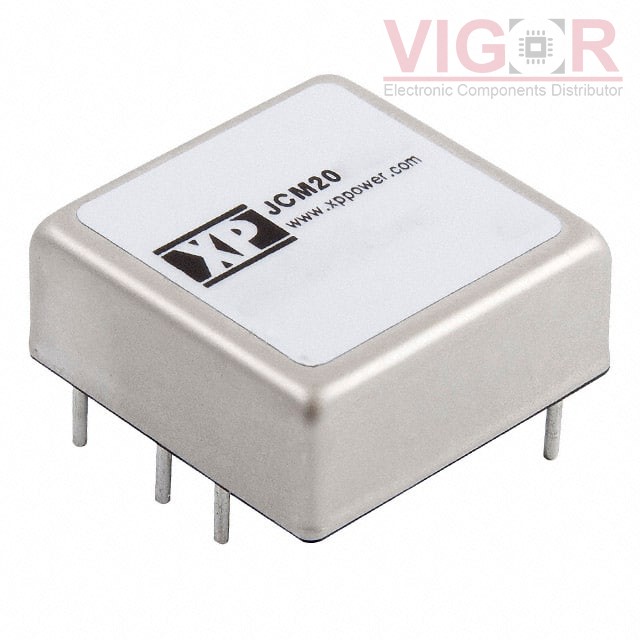

JCM2012S12

Part No :: JCM2012S12

Manufacturer: XP Power

VIGOR # :: 4098834

Description: DC DC CONVERTER 12V 20W

Catalog: DC DC Converters

DataSheet: JCM2012S12 PDF

Country of origin: -

Date code: -

JCM2012S12 Specifications

Type	Description
Series:	JCM (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.67A
Power (Watts):	20 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
PDQE20-Q24-S12-D Match 99%	CUI Inc. DC DC CONVERTER 12V 20W	JCM2012S12 vs PDQE20-Q24-S12-D
JTM2024S12 Match 100%	XP Power DC DC CONVERTER 12V 20W	JCM2012S12 vs JTM2024S12
PXD2012S12 Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 12V 20W	JCM2012S12 vs PXD2012S12
URB2412YMD-20WR3 Match 99%	Mornsun DC DC CONVERTER 12V 20W	JCM2012S12 vs URB2412YMD-20WR3
PXG-M20-24WS12 Match 86%	TDK-Lambda, Inc. DC DC CONVERTER 12V 20W	JCM2012S12 vs PXG-M20-24WS12
FED20-24S12W Match 100%	P-Duke Technology, Inc. DC DC CONVERTER 12V 20W	JCM2012S12 vs FED20-24S12W

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 912

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$40.4200~~	~~$40.42~~
10	~~$40.4200~~	~~$404.20~~

Current price of JCM2012S12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
