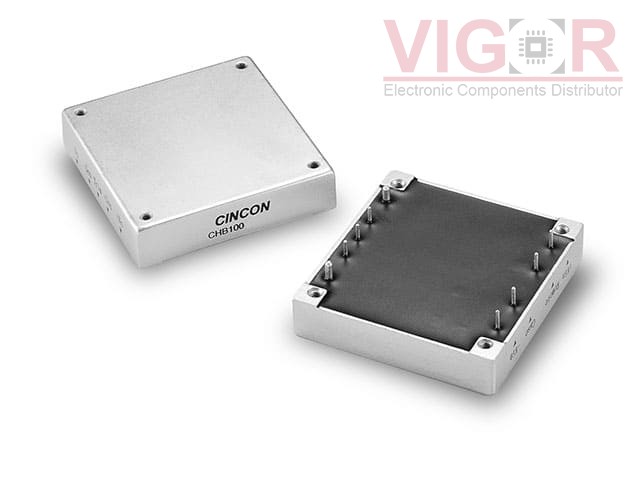

CHB100-24S15N

Part No :: CHB100-24S15N

Manufacturer: Cincon

VIGOR # :: 4098865

Description: DC DC CONVERTER 15V 101W

Catalog: DC DC Converters

DataSheet: CHB100-24S15N PDF

Country of origin: -

Date code: -

CHB100-24S15N Specifications

Type	Description
Series:	CHB100 (100W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6.7A
Power (Watts):	101 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	Half Brick
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CHE100W-48S15N Match 100%	Cincon DC DC CONVERTER 15V 101W	CHB100-24S15N vs CHE100W-48S15N
CHE100W-24S15N Match 100%	Cincon DC DC CONVERTER 15V 101W	CHB100-24S15N vs CHE100W-24S15N
CBS1002415-RT Match 100%	Cosel DC DC CONVERTER 15V 101W	CHB100-24S15N vs CBS1002415-RT
CBS1002415-F3 Match 100%	Cosel DC DC CONVERTER 15V 101W	CHB100-24S15N vs CBS1002415-F3
CBS1002415-R Match 100%	Cosel DC DC CONVERTER 15V 101W	CHB100-24S15N vs CBS1002415-R
CBS1002415-RF1 Match 100%	Cosel DC DC CONVERTER 15V 101W	CHB100-24S15N vs CBS1002415-RF1

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 661

Shipped from

HK warehouse

Expected Shipping Date

Aug 15 - Aug 19 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$82.6142~~	~~$82.61~~
12	~~$81.7958~~	~~$981.55~~

Current price of CHB100-24S15N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
