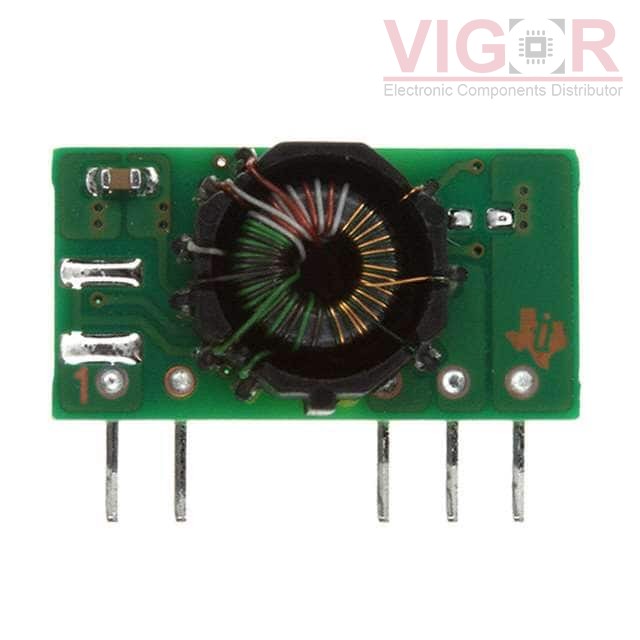

DCH010505DN7

Image is for reference,
please contact us to get the real picture

Part No :: DCH010505DN7

Manufacturer: Texas Instruments

Description: DC DC CONVERTER +/-5V 1W

Catalog: DC DC Converters

DataSheet: DCH010505DN7 PDF

Availability: 585 pieces

Unit Price: ~~$6.87000~~

Current price of DCH010505DN7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DCH010505DN7 Specifications

Type	Description
Series:	DCH01 (1W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	72%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
