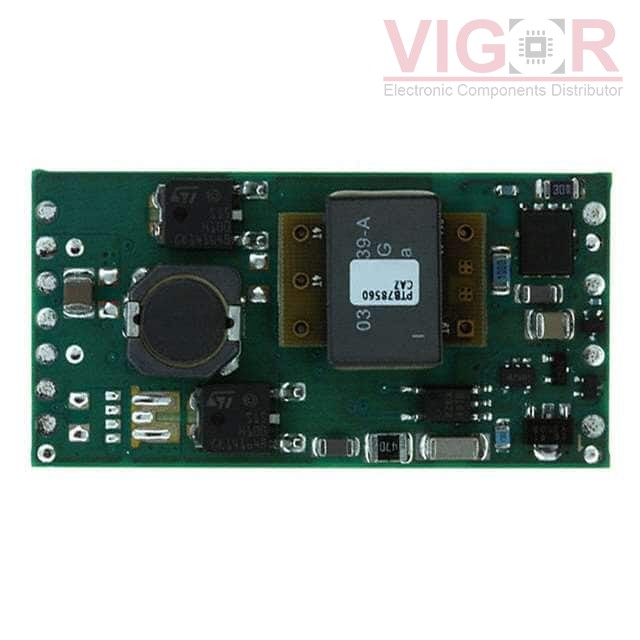

PTB78560CAZ

Part No :: PTB78560CAZ

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 9-13.2V 30W

Catalog: DC DC Converters

DataSheet: PTB78560CAZ PDF

Availability: 65 pieces

Unit Price: ~~$72.63000~~

Current price of PTB78560CAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PTB78560CAZ Specifications

Type	Description
Series:	PTB78560 (30W)
Package:	Tray
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	60V
Voltage - Output 1:	9 ~ 13.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.5A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Surface Mount
Package / Case:	11-SMD Module
Size / Dimension:	2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
