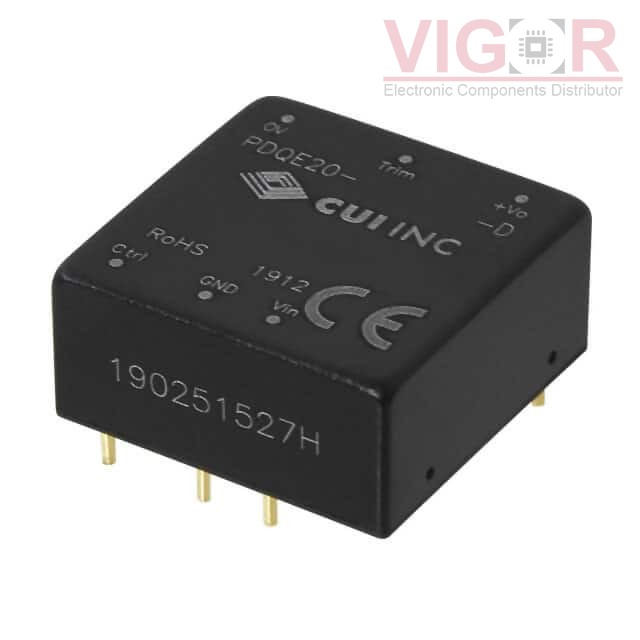

PDQE20-Q24-S24-D

Part No :: PDQE20-Q24-S24-D

Manufacturer: CUI Inc.

VIGOR # :: 4101458

Description: DC DC CONVERTER 24V 20W

Catalog: DC DC Converters

DataSheet: PDQE20-Q24-S24-D PDF

Country of origin: -

Date code: -

PDQE20-Q24-S24-D Specifications

Type	Description
Series:	PDQE20-D (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	833mA
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	91%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
15DMWE4_2424S1.5 Match 79%	TE Connectivity AMP Connectors DC-DC	PDQE20-Q24-S24-D vs 15DMWE4_2424S1.5
PDQE15-Q24-S24-D Match 79%	CUI Inc. DC DC CONVERTER 24V 15W	PDQE20-Q24-S24-D vs PDQE15-Q24-S24-D
REM20-2424SW/P Match 86%	RECOM Power DC DC CONVERTER 24V 20W	PDQE20-Q24-S24-D vs REM20-2424SW/P
PXG-M20-24WS24 Match 86%	TDK-Lambda, Inc. DC DC CONVERTER 24V 20W	PDQE20-Q24-S24-D vs PXG-M20-24WS24
URB2424YMD-15WR3 Match 79%	Mornsun DC DC CONVERTER 24V 15W	PDQE20-Q24-S24-D vs URB2424YMD-15WR3
URB2424YMD-20WR3 Match 100%	Mornsun DC DC CONVERTER 24V 20W	PDQE20-Q24-S24-D vs URB2424YMD-20WR3
