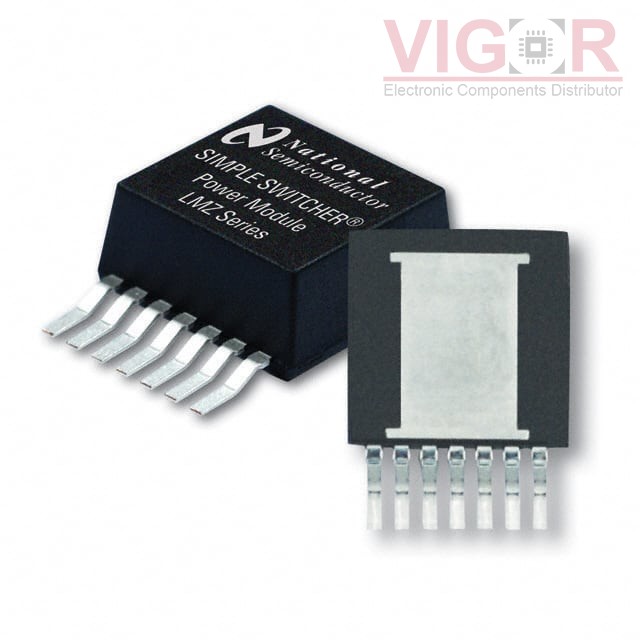

LMZ22003TZ/NOPB

Part No :: LMZ22003TZ/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 4101779

Description: DC DC CONVERTER 0.8-6V

Catalog: DC DC Converters

DataSheet: LMZ22003TZ/NOPB PDF

Country of origin: -

Date code: -

LMZ22003TZ/NOPB Specifications

Type	Description
Series:	SIMPLE SWITCHER®
Package:	Tube
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	6V
Voltage - Input (Max):	20V
Voltage - Output 1:	0.8 ~ 6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	92%
Mounting Type:	Surface Mount
Package / Case:	TO-PMOD-7, Power Module
Size / Dimension:	0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LMZ12003TZX-ADJ/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22003TZ/NOPB vs LMZ12003TZX-ADJ/NOPB
LMZ12003TZE-ADJ/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22003TZ/NOPB vs LMZ12003TZE-ADJ/NOPB
LMZ22003TZE/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22003TZ/NOPB vs LMZ22003TZE/NOPB
LMZ14203HTZX/NOPB Match 100%	Texas Instruments DC DC CONVERTER 5-30V	LMZ22003TZ/NOPB vs LMZ14203HTZX/NOPB
LMZ23603TZ/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22003TZ/NOPB vs LMZ23603TZ/NOPB
LMZ23603TZE/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22003TZ/NOPB vs LMZ23603TZE/NOPB

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 174

Shipped from

HK warehouse

Expected Shipping Date

Aug 29 - Sep 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.3000~~	~~$9.30~~
10	~~$9.1622~~	~~$91.62~~
45	~~$9.0212~~	~~$405.95~~
135	~~$7.8935~~	~~$1 065.62~~
540	~~$7.6116~~	~~$4 110.25~~

Current price of LMZ22003TZ/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
