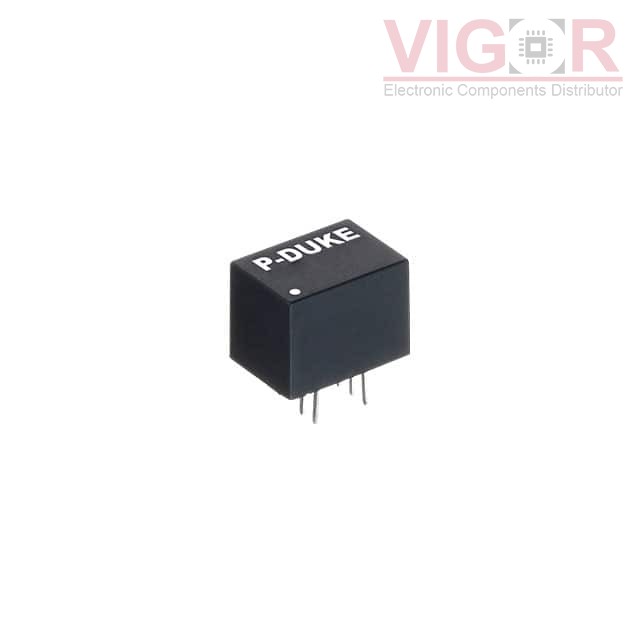

SDH05-48S05W

Part No :: SDH05-48S05W

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4102288

Description: DC DC CONVERTER 5V 5W

Catalog: DC DC Converters

DataSheet: SDH05-48S05W PDF

Country of origin: -

Date code: -

SDH05-48S05W Specifications

Type	Description
Series:	SDH05W (5W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	5 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module, 6 Leads
Size / Dimension:	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SDH03-48S05W Match 63%	P-Duke Technology, Inc. DC DC CONVERTER 5V 3W	SDH05-48S05W vs SDH03-48S05W
SDH05-48S3P3W Match 51%	P-Duke Technology, Inc. DC DC CONVERTER 3.3V 3.3W	SDH05-48S05W vs SDH05-48S3P3W
