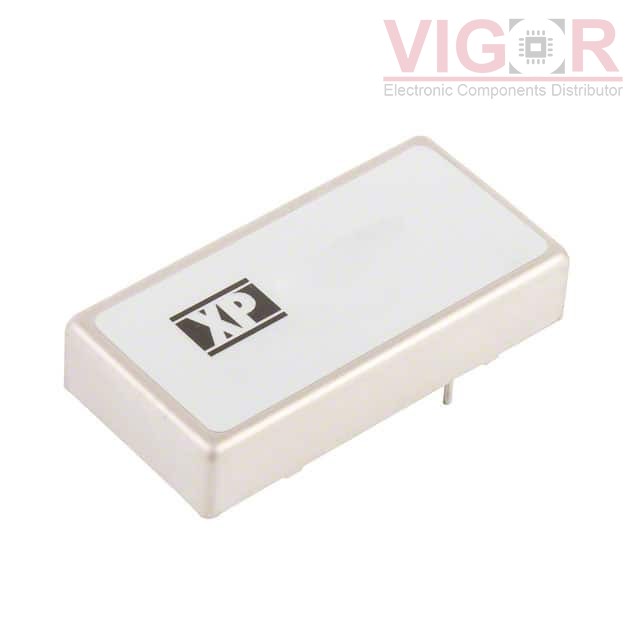

JCH1012S12

Part No :: JCH1012S12

Manufacturer: XP Power

VIGOR # :: 4103303

Description: DC DC CONVERTER 12V 10W

Catalog: DC DC Converters

DataSheet: JCH1012S12 PDF

Country of origin: -

Date code: -

JCH1012S12 Specifications

Type	Description
Series:	JCH (10W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	833mA
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	5-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JCH1012S15 Match 71%	XP Power DC DC CONVERTER 15V 10W	JCH1012S12 vs JCH1012S15
JCK1512S15 Match 60%	XP Power DC DC CONVERTER 15V 15W	JCH1012S12 vs JCK1512S15
REC15-1212S/H3/M/X2 Match 62%	RECOM Power DC DC CONVERTER 12V 15W	JCH1012S12 vs REC15-1212S/H3/M/X2
EC4BW02 Match 86%	Cincon DC DC CONVERTER 12V 10W	JCH1012S12 vs EC4BW02
REC15-1212S/H2/M/X2 Match 67%	RECOM Power DC DC CONVERTER 12V 15W	JCH1012S12 vs REC15-1212S/H2/M/X2
JCK1512S12 Match 71%	XP Power DC DC CONVERTER 12V 15W	JCH1012S12 vs JCK1512S12

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 56

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$23.2500~~	~~$23.25~~
5	~~$22.5520~~	~~$112.76~~
10	~~$21.8550~~	~~$218.55~~
25	~~$20.9252~~	~~$523.13~~
100	~~$19.6560~~	~~$1 965.60~~

Current price of JCH1012S12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
