JHL0324D15

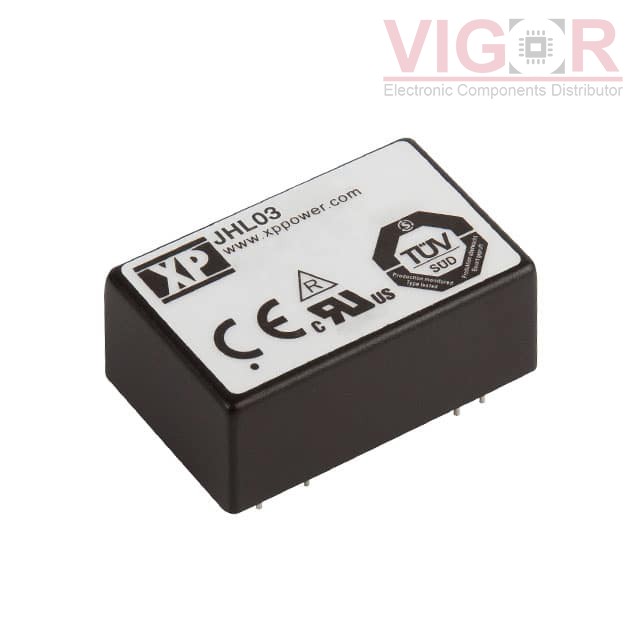

Image is for reference,
please contact us to get the real picture

Part No :: JHL0324D15

Manufacturer: XP Power

Description: DC DC CONVERTER +/-15V 3W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Oct 15 - Oct 19 2025

DataSheet: JHL0324D15 PDF

Availability: 857 pieces

Unit Price: ~~$35.00000~~

Current price of JHL0324D15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JHL0324D15 Specifications

Type	Description
Series:	JHL (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	20V
Voltage - Input (Max):	30V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	3 W
Voltage - Isolation:	4 kV
Applications:	Medical
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-20°C ~ 80°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 9 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
