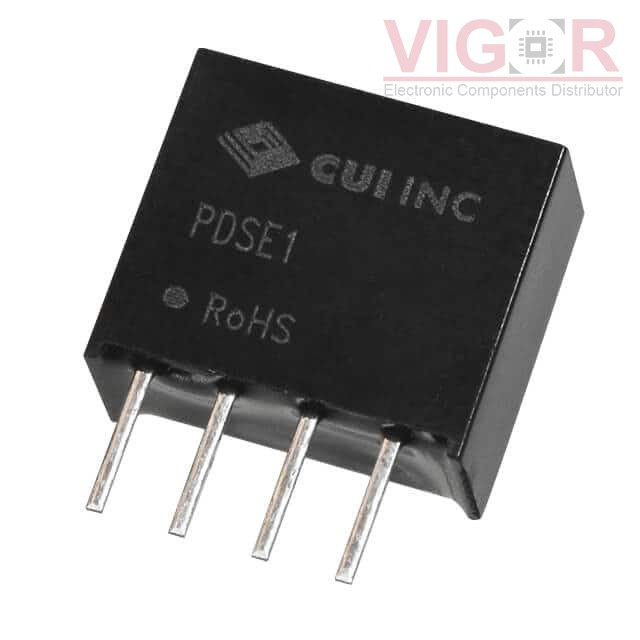

PDSE1-S5-S5-S

Part No :: PDSE1-S5-S5-S

Manufacturer: CUI Inc.

VIGOR # :: 4105305

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: PDSE1-S5-S5-S PDF

Country of origin: -

Date code: -

PDSE1-S5-S5-S Specifications

Type	Description
Series:	PDSE1-S (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	4-SIP Module
Size / Dimension:	0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
1S4AE_0505S3UP Match 100%	TE Connectivity AMP Connectors DC-DC	PDSE1-S5-S5-S vs 1S4AE_0505S3UP
PDS1-S5-S5-S Match 91%	CUI Inc. DC DC CONVERTER 5V 1W	PDSE1-S5-S5-S vs PDS1-S5-S5-S
B0505S-1WR3 Match 100%	Mornsun DC DC CONVERTER 5V 1W	PDSE1-S5-S5-S vs B0505S-1WR3
