AM1SR-0503SJZ

Part No :: AM1SR-0503SJZ

Manufacturer: DComponents

VIGOR # :: 4105526

Description: DC DC CONVERTER 3.3V 1W

Catalog: DC DC Converters

DataSheet: AM1SR-0503SJZ PDF

Country of origin: -

Date code: -

AM1SR-0503SJZ Specifications

Type	Description
Series:	AM1SR-JZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.75V
Voltage - Input (Max):	5.25V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 71°C (With Derating)
Efficiency:	68%
Mounting Type:	Through Hole
Package / Case:	4-SIP Module
Size / Dimension:	0.46" L x 0.40" W x 0.24" H (11.6mm x 10.2mm x 6.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RO-0505S/EHP Match 61%	RECOM Power DC DC CONVERTER 5V 1W	AM1SR-0503SJZ vs RO-0505S/EHP
PCSA1-S5-S5-S Match 59%	CUI Inc. DC DC CONVERTER 5V 1W	AM1SR-0503SJZ vs PCSA1-S5-S5-S
CRE1S0505SC Match 59%	Murata Power Solutions DC DC CONVERTER 5V 1W	AM1SR-0503SJZ vs CRE1S0505SC
1S4E_0505S1.5U Match 64%	TE Connectivity AMP Connectors DC-DC	AM1SR-0503SJZ vs 1S4E_0505S1.5U
PUA0505S1A Match 61%	Flex Power Modules DC DC CONVERTER 5V 1W	AM1SR-0503SJZ vs PUA0505S1A
PQS075-S5-S3-S Match 87%	CUI Inc. DC DC CONVERTER 3.3V 660MW	AM1SR-0503SJZ vs PQS075-S5-S3-S

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 933

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.5500~~	~~$2.55~~

Current price of AM1SR-0503SJZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TEN 30-4810WIN

DC DC CONVERTER 3.3V 25W

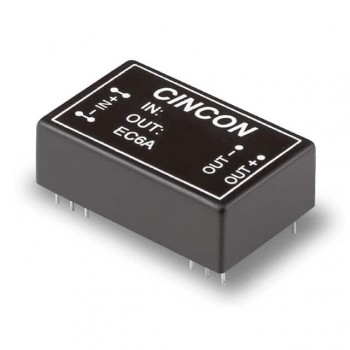

EC6A25
