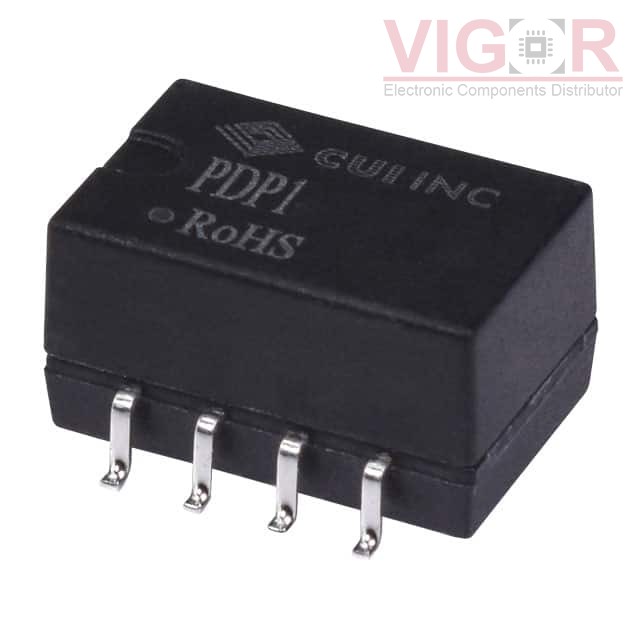

PDP1-S5-S9-M-TR

Part No :: PDP1-S5-S9-M-TR

Manufacturer: CUI Inc.

VIGOR # :: 4105847

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

DataSheet: PDP1-S5-S9-M-TR PDF

Country of origin: -

Date code: -

PDP1-S5-S9-M-TR Specifications

Type	Description
Series:	PDP1-M (1W)
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	83%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module
Size / Dimension:	0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1LS-0509SVZTR Match 100%	DComponents DC DC CONVERTER 9V 999MW	PDP1-S5-S9-M-TR vs AM1LS-0509SVZTR
PDP1-S5-S9-M Match 100%	CUI Inc. DC DC CONVERTER 9V 1W	PDP1-S5-S9-M-TR vs PDP1-S5-S9-M
IFS0105S12 Match 63%	XP Power DC DC CONVERTER 12V 1W	PDP1-S5-S9-M-TR vs IFS0105S12
AM1LS-0512SVZTR Match 63%	DComponents DC DC CONVERTER 12V 1W	PDP1-S5-S9-M-TR vs AM1LS-0512SVZTR
IFS0105S09 Match 100%	XP Power DC DC CONVERTER 9V 999MW	PDP1-S5-S9-M-TR vs IFS0105S09
AM1LS-0509SVZ Match 100%	DComponents DC DC CONVERTER 9V 999MW	PDP1-S5-S9-M-TR vs AM1LS-0509SVZ

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 578

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.6880~~	~~$2.69~~

Current price of PDP1-S5-S9-M-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
