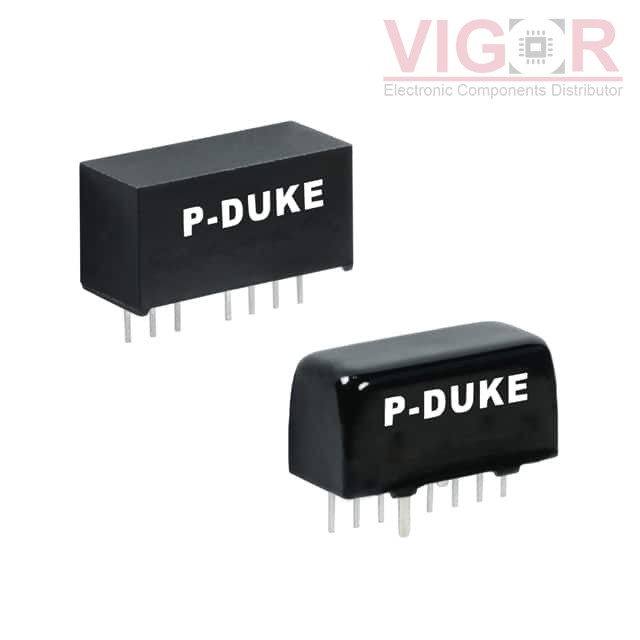

PDL09-12S12M

Part No :: PDL09-12S12M

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4106034

Description: ISOLATED / 9W/ VOUT:12

Catalog: DC DC Converters

DataSheet: PDL09-12S12M PDF

Country of origin: -

Date code: -

PDL09-12S12M Specifications

Type	Description
Series:	PDL09 (9W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	750mA
Power (Watts):	9 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, Standby Output
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module, 10 Leads
Size / Dimension:	0.83" L x 0.38" W x 0.44" H (21.0mm x 9.6mm x 11.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB, CE, cURus
Standard Number:	-
