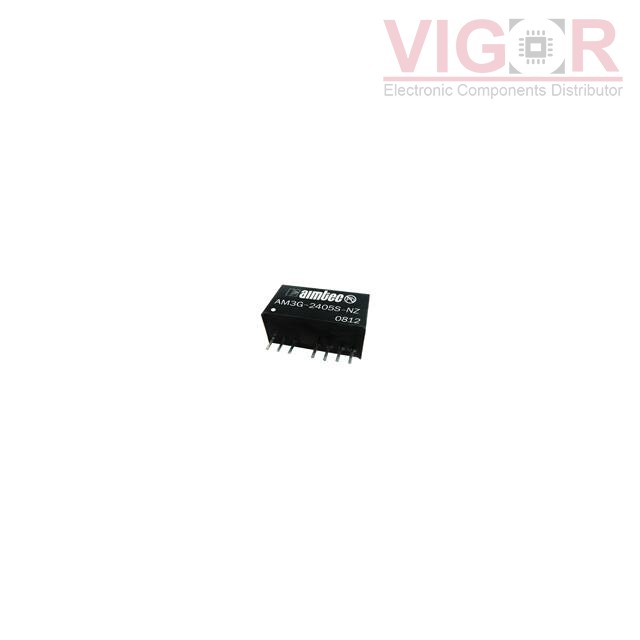

AM3G-0503S-NZ

Part No :: AM3G-0503S-NZ

Manufacturer: DComponents

VIGOR # :: 4106664

Description: DC DC CONVERTER 3.3V 2.5W

Catalog: DC DC Converters

DataSheet: AM3G-0503S-NZ PDF

Country of origin: -

Date code: -

AM3G-0503S-NZ Specifications

Type	Description
Series:	AM3G-NZ (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	758mA
Power (Watts):	2.5 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	68%
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 7 Leads
Size / Dimension:	0.87" L x 0.37" W x 0.49" H (22.0mm x 9.5mm x 12.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
3S8W_0503S2RP Match 69%	TE Connectivity AMP Connectors DC-DC	AM3G-0503S-NZ vs 3S8W_0503S2RP
IZ0503SA Match 90%	XP Power DC DC CONVERTER 3.3V 3W	AM3G-0503S-NZ vs IZ0503SA
HEA2-5S33 Match 70%	Daburn DC DC CONVERTER 3.3V 1.7W	AM3G-0503S-NZ vs HEA2-5S33
PDQ2-D5-S3-S Match 76%	CUI Inc. DC DC CONVERTER 3.3V 2W	AM3G-0503S-NZ vs PDQ2-D5-S3-S

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 573

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.0400~~	~~$8.04~~

Current price of AM3G-0503S-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
