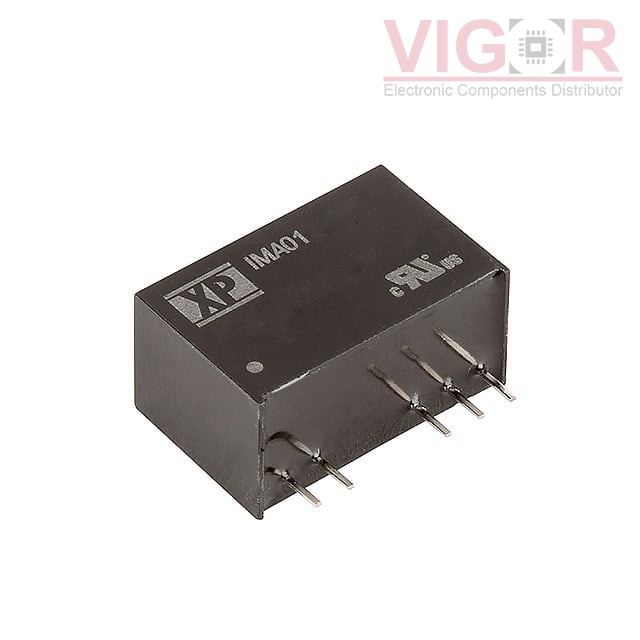

IMA0105S12

Part No :: IMA0105S12

Manufacturer: XP Power

VIGOR # :: 4106744

Description: DC DC CONVERTER 12V 1W

Catalog: DC DC Converters

DataSheet: IMA0105S12 PDF

Country of origin: -

Date code: -

IMA0105S12 Specifications

Type	Description
Series:	IMA01 (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	83.3mA
Power (Watts):	1 W
Voltage - Isolation:	4 kV
Applications:	Medical
Features:	SCP
Operating Temperature:	-40°C ~ 75°C
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.36" W x 0.42" H (19.5mm x 9.2mm x 10.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1DS-0512SH52Z Match 97%	DComponents DC DC CONVERTER 12V 1W	IMA0105S12 vs AM1DS-0512SH52Z
AM1DS-0512SH40Z Match 100%	DComponents DC DC CONVERTER 12V 1W	IMA0105S12 vs AM1DS-0512SH40Z
AM1DS-0512SH30Z Match 96%	DComponents DC DC CONVERTER 12V 1W	IMA0105S12 vs AM1DS-0512SH30Z
ITV0512SA Match 96%	XP Power DC DC CONVERTER 12V 1W	IMA0105S12 vs ITV0512SA
AM1D-0512SH30-RZ Match 96%	DComponents DC DC CONVERTER 12V 1W	IMA0105S12 vs AM1D-0512SH30-RZ
1S7BE_0512S3U Match 96%	TE Connectivity AMP Connectors DC-DC	IMA0105S12 vs 1S7BE_0512S3U

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1790

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.4500~~	~~$7.45~~
5	~~$7.2260~~	~~$36.13~~
10	~~$7.0030~~	~~$70.03~~
25	~~$6.7052~~	~~$167.63~~
100	~~$6.2580~~	~~$625.80~~

Current price of IMA0105S12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

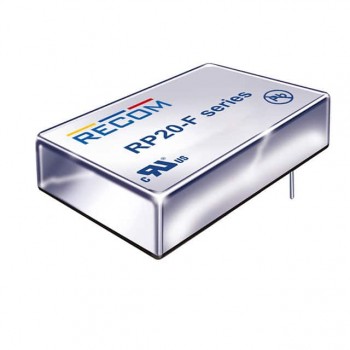

RP20-123.3SF
