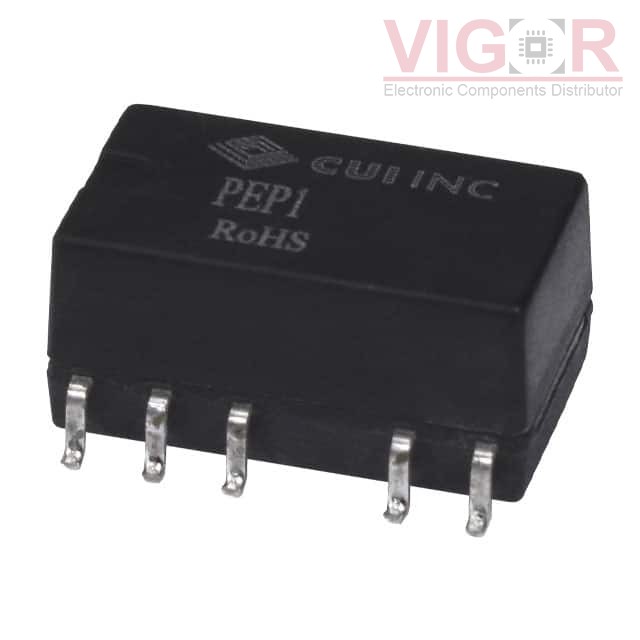

PEP1-S5-D3-M

Part No :: PEP1-S5-D3-M

Manufacturer: CUI Inc.

VIGOR # :: 4109028

Description: DC DC CONVERTER +/-3.3V 997MW

Catalog: DC DC Converters

DataSheet: PEP1-S5-D3-M PDF

Country of origin: -

Date code: -

PEP1-S5-D3-M Specifications

Type	Description
Series:	PEP1-M (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-3.3V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	151mA, 151mA
Power (Watts):	997 mW
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	74%
Mounting Type:	Surface Mount
Package / Case:	12-SMD Module, 10 Leads
Size / Dimension:	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1
