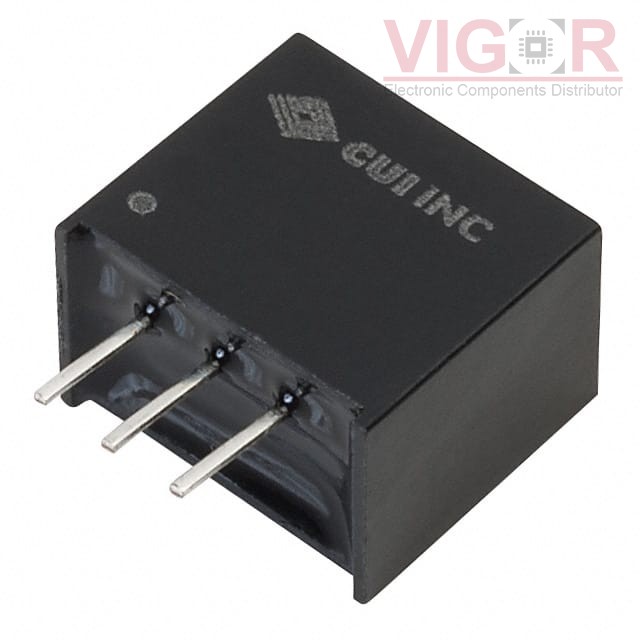

P7805-Q24-S5-S

Part No :: P7805-Q24-S5-S

Manufacturer: CUI Inc.

VIGOR # :: 4109047

Description: DC DC CONVERTER 5V 3W

Catalog: DC DC Converters

DataSheet: P7805-Q24-S5-S PDF

Country of origin: -

Date code: -

P7805-Q24-S5-S Specifications

Type	Description
Series:	P7805-S
Package:	Tube
Part Status:	Active
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	6.5V
Voltage - Input (Max):	32V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	3 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	94%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	EN
Standard Number:	55024; 55032 Class A

Alternative Products

Part Number	Manufacturer & Description	Compare
PM05S050A Match 100%	Delta Electronics / Power DC DC CONVERTER 5V 3W	P7805-Q24-S5-S vs PM05S050A
VX7805-500 Match 93%	CUI Inc. DC DC CONVERTER 5V 2.5W	P7805-Q24-S5-S vs VX7805-500
R-785.0-0.5 Match 100%	RECOM Power DC DC CONVERTER 5V 3W	P7805-Q24-S5-S vs R-785.0-0.5
PM-500A50 Match 100%	Volgen (Kaga Electronics USA) DC DC CONVERTER 5V 500MA	P7805-Q24-S5-S vs PM-500A50
SR05S05 Match 100%	XP Power DC DC CONVERTER 5V 3W	P7805-Q24-S5-S vs SR05S05
VR05S05 Match 100%	XP Power DC DC CONVERTER 5V	P7805-Q24-S5-S vs VR05S05
