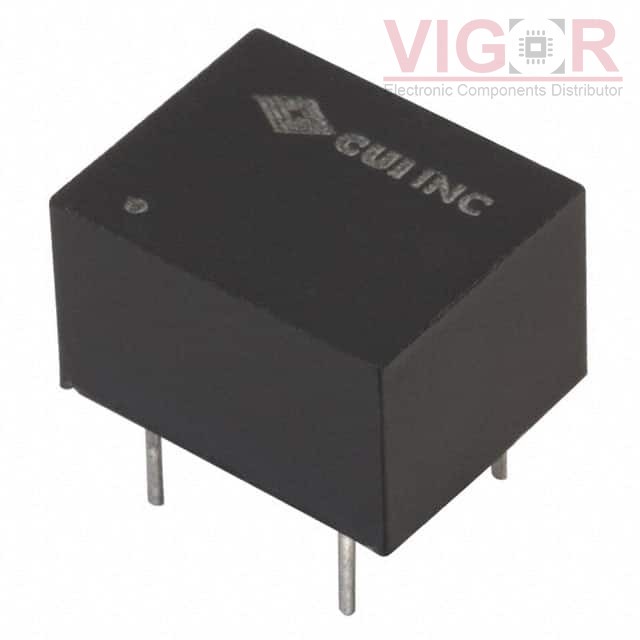

PDS1-S5-S24-D

Part No :: PDS1-S5-S24-D

Manufacturer: CUI Inc.

VIGOR # :: 4109997

Description: DC DC CONVERTER 24V 1W

Catalog: DC DC Converters

DataSheet: PDS1-S5-S24-D PDF

Country of origin: -

Date code: -

PDS1-S5-S24-D Specifications

Type	Description
Series:	PDS1-D (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	42mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 60950-1

Alternative Products

Part Number	Manufacturer & Description	Compare
F0524N-1WR3 Match 91%	Mornsun DC DC CONVERTER 24V 1W	PDS1-S5-S24-D vs F0524N-1WR3
