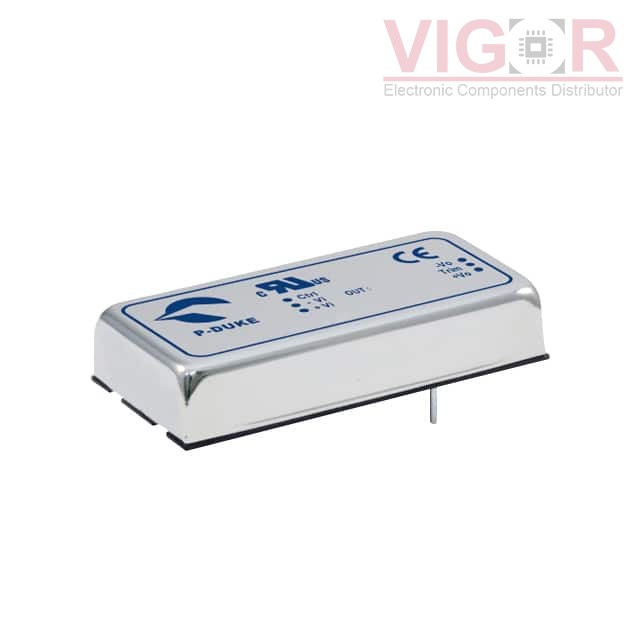

RED20-48S12W

Part No :: RED20-48S12W

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4110036

Description: ISOLATED / 20W/ VOUT:12

Catalog: DC DC Converters

DataSheet: RED20-48S12W PDF

Country of origin: -

Date code: -

RED20-48S12W Specifications

Type	Description
Series:	RED20W (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.67A
Power (Watts):	20 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off, Standby Output
Operating Temperature:	-40°C ~ 101°C (With Derating)
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	CB, CE, cURus
Standard Number:	60950-1

Alternative Products

Part Number	Manufacturer & Description	Compare
PDQE20-Q48-S12-D Match 95%	CUI Inc. DC DC CONVERTER 12V 20W	RED20-48S12W vs PDQE20-Q48-S12-D
JTM2048S12 Match 96%	XP Power DC DC CONVERTER 12V 20W	RED20-48S12W vs JTM2048S12
PXG-M20-48WS12 Match 90%	TDK-Lambda, Inc. DC DC CONVERTER 12V 20W	RED20-48S12W vs PXG-M20-48WS12
FED20-48S12W Match 96%	P-Duke Technology, Inc. DC DC CONVERTER 12V 20W	RED20-48S12W vs FED20-48S12W
LCD20-48S12W Match 96%	P-Duke Technology, Inc. ISOLATED/20W /VOUT:12	RED20-48S12W vs LCD20-48S12W
URB4812YMD-20WR3 Match 95%	Mornsun DC DC CONVERTER 12V 20W	RED20-48S12W vs URB4812YMD-20WR3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1877

Shipped from

HK warehouse

Expected Shipping Date

Jul 31 - Aug 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$61.4900~~	~~$61.49~~

Current price of RED20-48S12W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

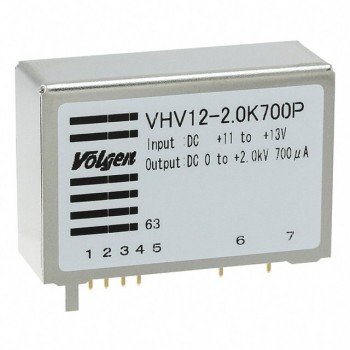

VHV12-2.0K700P

DC DC CONVERTER 2000V 1.5W

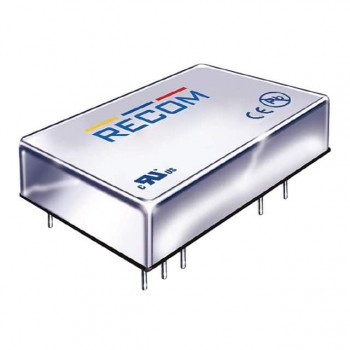

RP08-4815SA/SMD

DC DC CONVERTER 15V 8W

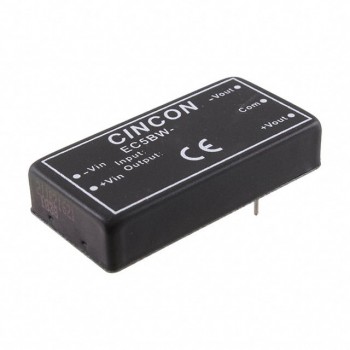

EC5BW-48D12T
