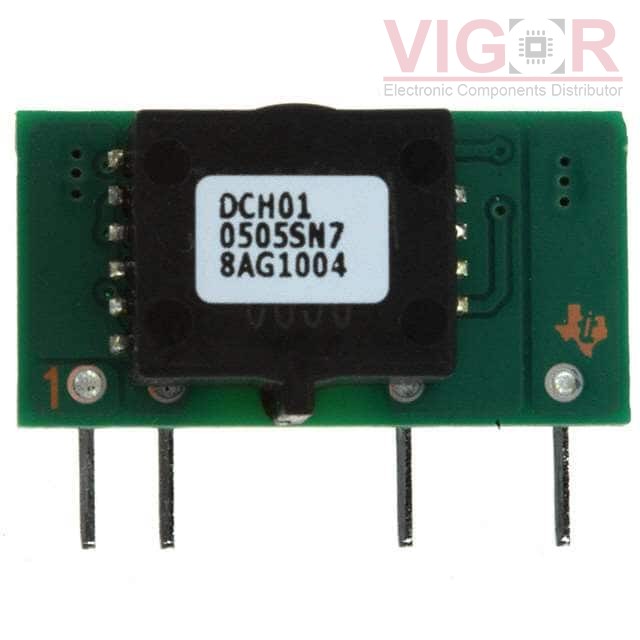

DCH010505SN7

Part No :: DCH010505SN7

Manufacturer: Texas Instruments

VIGOR # :: 4110040

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: DCH010505SN7 PDF

Country of origin: -

Date code: -

DCH010505SN7 Specifications

Type	Description
Series:	DCH01 (1W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	72%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1DS-0505SH30Z Match 100%	DComponents DC DC CONVERTER 5V 1W	DCH010505SN7 vs AM1DS-0505SH30Z
RE-0505S/HP Match 95%	RECOM Power DC DC CONVERTER 5V 1W	DCH010505SN7 vs RE-0505S/HP
CRV1S0505SC Match 100%	Murata Power Solutions DC DC CONVERTER 5V 1W	DCH010505SN7 vs CRV1S0505SC
PF01S0505A Match 100%	Delta Electronics / Power DC DC CONVERTER 5V 1W	DCH010505SN7 vs PF01S0505A
AM1D-0505SH30-NZ Match 100%	DComponents DC DC CONVERTER 5V 1W	DCH010505SN7 vs AM1D-0505SH30-NZ
NMV0505SAC Match 100%	Murata Power Solutions DC DC CONVERTER 5V 1W	DCH010505SN7 vs NMV0505SAC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 7462

Shipped from

HK warehouse

Expected Shipping Date

Aug 04 - Aug 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.8700~~	~~$6.87~~
10	~~$6.6760~~	~~$66.76~~
70	~~$6.2831~~	~~$439.82~~
140	~~$6.0869~~	~~$852.16~~
560	~~$5.4978~~	~~$3 078.77~~

Current price of DCH010505SN7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

JCD0605S12

DC DC CONVERTER 12V 6W

HAE100-110S24W

ISOLATED/100W /VOUT:24

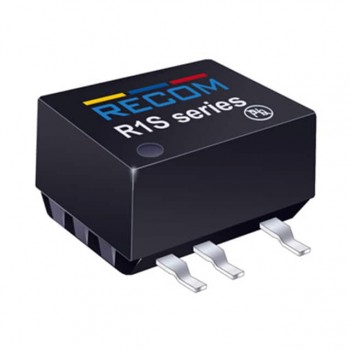

R1S-0512/H-R
