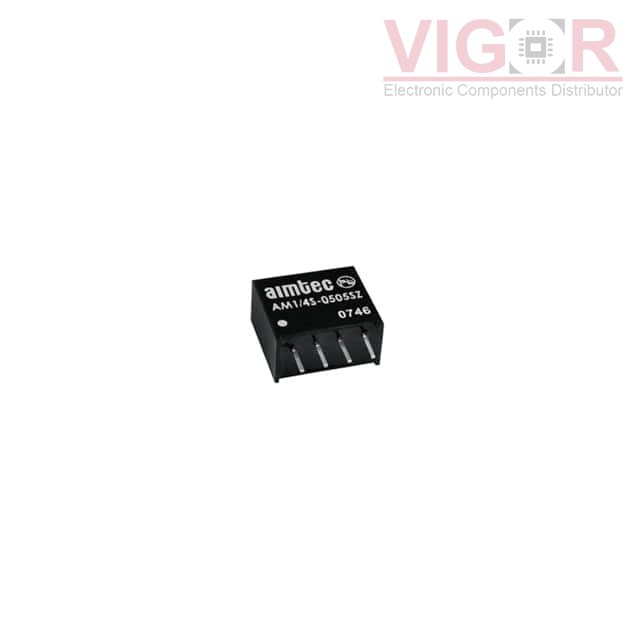

AM1/4S-0509SH30Z

Part No :: AM1/4S-0509SH30Z

Manufacturer: DComponents

VIGOR # :: 4110300

Description: DC DC CONVERTER 9V 250MW

Catalog: DC DC Converters

DataSheet: AM1/4S-0509SH30Z PDF

Country of origin: -

Date code: -

AM1/4S-0509SH30Z Specifications

Type	Description
Series:	AM1/4S-Z (0.25W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	27.77mA
Power (Watts):	250 mW
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	73%
Mounting Type:	Through Hole
Package / Case:	4-SIP Module
Size / Dimension:	0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1/4S-0507SH30Z Match 71%	DComponents DC DC CONVERTER 7.2V 250MW	AM1/4S-0509SH30Z vs AM1/4S-0507SH30Z
AM1/4S-0509SZ Match 86%	DComponents DC DC CONVERTER 9V 250MW	AM1/4S-0509SH30Z vs AM1/4S-0509SZ
RM-0509S/P Match 85%	RECOM Power DC DC CONVERTER 9V 250MW	AM1/4S-0509SH30Z vs RM-0509S/P
RM-0509S/H Match 94%	RECOM Power DC DC CONVERTER 9V 250MW	AM1/4S-0509SH30Z vs RM-0509S/H
RM-0509S Match 85%	RECOM Power DC DC CONVERTER 9V 250MW	AM1/4S-0509SH30Z vs RM-0509S
RM-0509S/HP Match 94%	RECOM Power DC DC CONVERTER 9V 250MW	AM1/4S-0509SH30Z vs RM-0509S/HP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 450

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.4100~~	~~$3.41~~

Current price of AM1/4S-0509SH30Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
