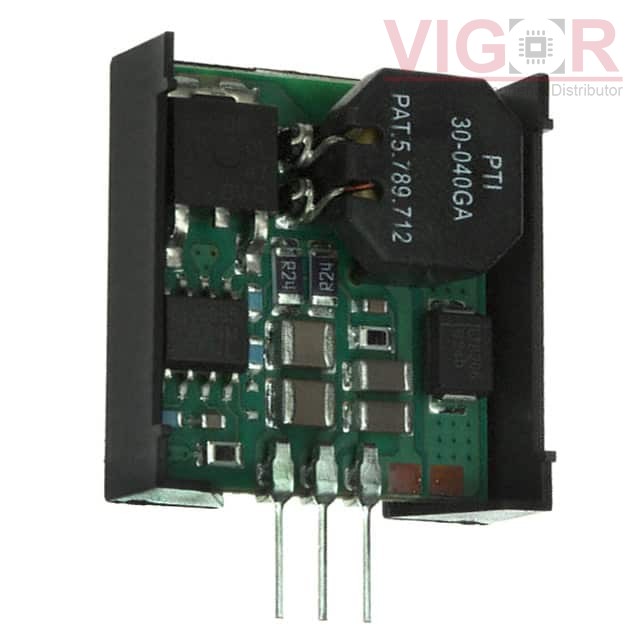

PT78NR252V

Part No :: PT78NR252V

Manufacturer: VIGOR

VIGOR # :: 4112042

Description: SWITCHING REGLTR, VOLTAGE-MODE

Catalog: DC DC Converters

DataSheet: PT78NR252V PDF

Country of origin: -

Date code: -

PT78NR252V Specifications

Type	Description
Series:	PT78NR200 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	15V
Voltage - Output 1:	-5.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	0°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	1.01" L x 0.38" W x 0.98" H (25.7mm x 9.7mm x 24.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TR2024S3V3 Match 100%	XP Power DC DC CONVERTER 3.3V	PT78NR252V vs TR2024S3V3
TR2024S1V2 Match 100%	XP Power DC DC CONVERTER 1.2V	PT78NR252V vs TR2024S1V2
P7805-2000-S Match 100%	CUI Inc. DC DC CONVERTER 5V 10W	PT78NR252V vs P7805-2000-S
TR2024S2V5 Match 100%	XP Power DC DC CONVERTER 2.5V	PT78NR252V vs TR2024S2V5
AMSR2-246.5Z Match 100%	DComponents DC DC CONVERTER 6.5V 13W	PT78NR252V vs AMSR2-246.5Z
LCW78_05-2.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	PT78NR252V vs LCW78_05-2.0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 318

Shipped from

HK warehouse

Expected Shipping Date

Aug 31 - Sep 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$15.2200~~	~~$15.22~~

Current price of PT78NR252V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
