DCP010505DBP-U

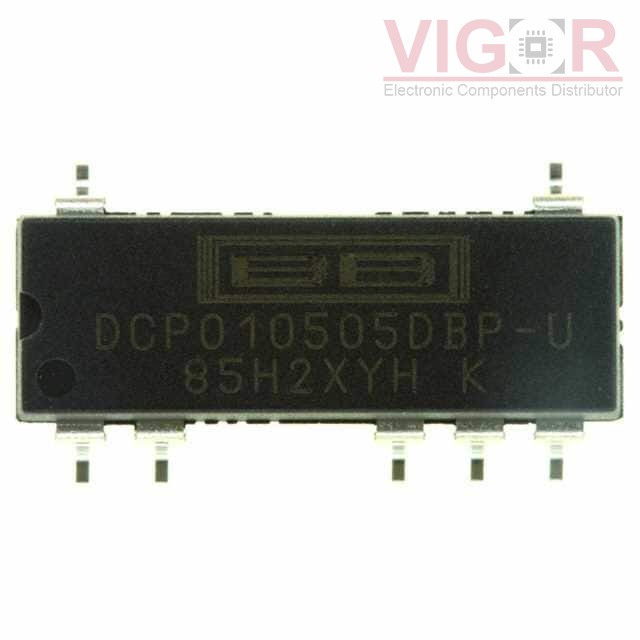

Image is for reference,
please contact us to get the real picture

Part No :: DCP010505DBP-U

Manufacturer: Texas Instruments

Description: DC DC CONVERTER +/-5V 1W

Catalog: DC DC Converters

DataSheet: DCP010505DBP-U PDF

Availability: 961 pieces

Unit Price: ~~$9.03000~~

Current price of DCP010505DBP-U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DCP010505DBP-U Specifications

Type	Description
Series:	DCP01B (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	81%
Mounting Type:	Surface Mount
Package / Case:	14-SMD Module, 7 Leads
Size / Dimension:	0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-
