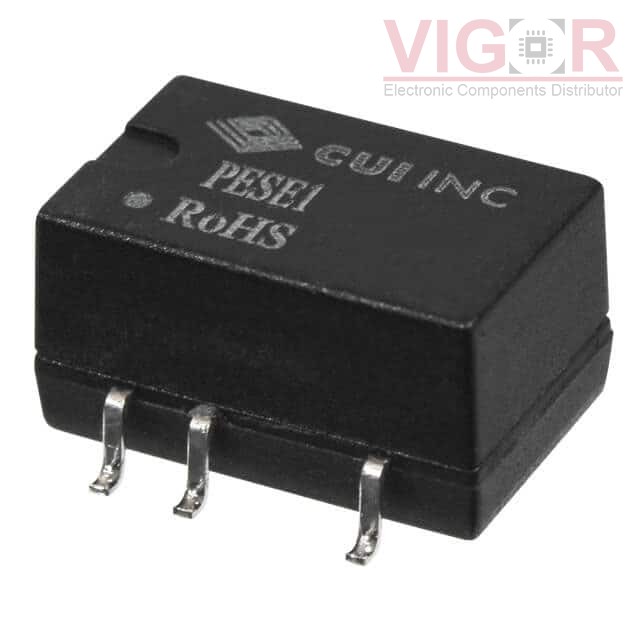

PESE1-S5-S15-M

Part No :: PESE1-S5-S15-M

Manufacturer: CUI Inc.

VIGOR # :: 4112517

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: PESE1-S5-S15-M PDF

Country of origin: -

Date code: -

PESE1-S5-S15-M Specifications

Type	Description
Series:	PESE1-M (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	83%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 5 Leads
Size / Dimension:	0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
ISE0515A Match 91%	XP Power DC DC CONVERTER 15V 1W	PESE1-S5-S15-M vs ISE0515A
PDSE1-S5-S15-M-TR Match 91%	CUI Inc. DC DC CONVERTER 15V 1W	PESE1-S5-S15-M vs PDSE1-S5-S15-M-TR
1T8A1_0515S3UP Match 100%	TE Connectivity AMP Connectors DC-DC	PESE1-S5-S15-M vs 1T8A1_0515S3UP
PESE1-S5-S15-M-TR Match 100%	CUI Inc. DC DC CONVERTER 15V 1W	PESE1-S5-S15-M vs PESE1-S5-S15-M-TR
AM1LS-0515SH30-NZTR Match 100%	DComponents DC DC CONVERTER 15V 1W	PESE1-S5-S15-M vs AM1LS-0515SH30-NZTR
PES1-S5-S15-M Match 100%	CUI Inc. DC DC CONVERTER 15V 1W	PESE1-S5-S15-M vs PES1-S5-S15-M

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1796

Shipped from

HK warehouse

Expected Shipping Date

Aug 25 - Aug 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.7800~~	~~$3.78~~

Current price of PESE1-S5-S15-M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
