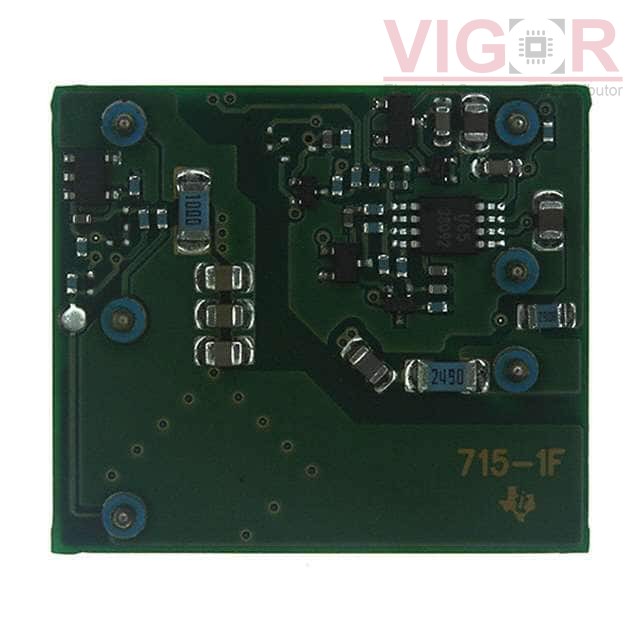

PTMA402050P2AZ

Part No :: PTMA402050P2AZ

Manufacturer: Texas Instruments

VIGOR # :: 4112586

Description: DC DC CONVERTER 5V 10W

Catalog: DC DC Converters

DataSheet: PTMA402050P2AZ PDF

Country of origin: -

Date code: -

PTMA402050P2AZ Specifications

Type	Description
Series:	PTMA40xx (10W)
Package:	Tray
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Surface Mount
Package / Case:	6-SMD Module
Size / Dimension:	1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SUCS104805BP Match 86%	Cosel DC DC CONVERTER 5V 10W	PTMA402050P2AZ vs SUCS104805BP
PTMA402050N2AZ Match 100%	VIGOR DC-DC REGULATED POWER SUPPLY MOD	PTMA402050P2AZ vs PTMA402050N2AZ
SUS104805BP Match 86%	Cosel DC DC CONVERTER 5V 10W	PTMA402050P2AZ vs SUS104805BP
SUS104805B Match 82%	Cosel DC DC CONVERTER 5V	PTMA402050P2AZ vs SUS104805B
SUCS104805B Match 86%	Cosel DC DC CONVERTER 5V 10W	PTMA402050P2AZ vs SUCS104805B
EC2SB-48S05S Match 100%	Cincon DC DC CONVERTER 5V 10W	PTMA402050P2AZ vs EC2SB-48S05S

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1624

Shipped from

HK warehouse

Expected Shipping Date

Jul 20 - Jul 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$28.0843~~	~~$28.08~~
30	~~$28.0843~~	~~$842.53~~

Current price of PTMA402050P2AZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
