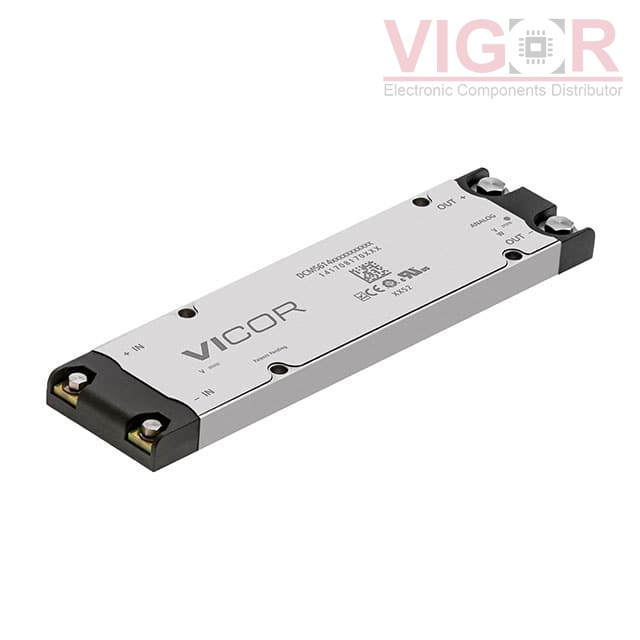

DCM5614BD0H36K3T06

Part No :: DCM5614BD0H36K3T06

Manufacturer: Vicor

VIGOR # :: 4114232

Description: DC DC CONVERTER 28V 1.3 KW

Catalog: DC DC Converters

DataSheet: DCM5614BD0H36K3T06 PDF

Country of origin: -

Date code: -

DCM5614BD0H36K3T06 Specifications

Type	Description
Series:	VI Chip® DCM® (1300W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	180V
Voltage - Input (Max):	400V
Voltage - Output 1:	28V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	46.43A
Power (Watts):	1.3 kW
Voltage - Isolation:	2.121 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, PMBus™
Operating Temperature:	-40°C ~ 125°C (With Derating)
Efficiency:	93.7%
Mounting Type:	Through Hole
Package / Case:	Module
Size / Dimension:	5.65" L x 1.40" W x 0.37" H (143.6mm x 35.5mm x 9.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCM5614BD0H36K3T09 Match 100%	Vicor DC DC CONVERTER 28V 1.3 KW	DCM5614BD0H36K3T06 vs DCM5614BD0H36K3T09
DCM5614BD0H36K3T10 Match 100%	Vicor DC DC CONVERTER 28V 1.3 KW	DCM5614BD0H36K3T06 vs DCM5614BD0H36K3T10
DCM5614BD0H36K3T05 Match 100%	Vicor DC DC CONVERTER 28V 1.3 KW	DCM5614BD0H36K3T06 vs DCM5614BD0H36K3T05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 89

Shipped from

HK warehouse

Expected Shipping Date

Aug 02 - Aug 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1 560.0300~~	~~$1 560.03~~

Current price of DCM5614BD0H36K3T06 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
