JHM2048D15

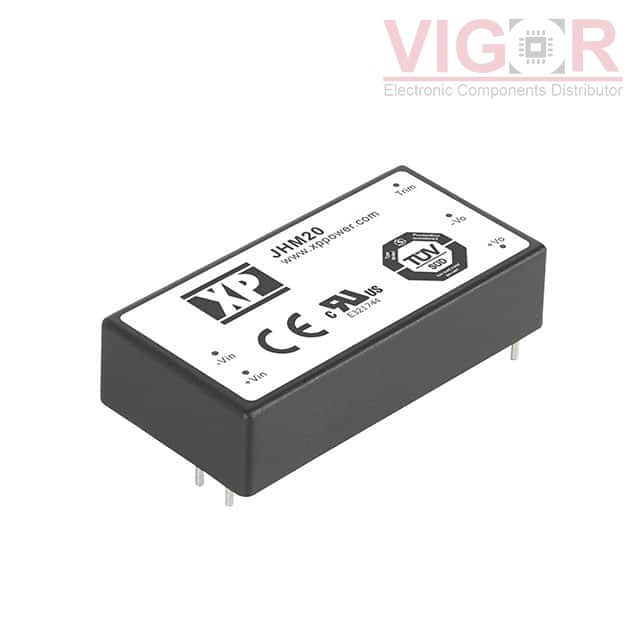

Product image
Product thumb
Part No :

JHM2048D15

Manufacturer
XP Power
VIGOR # :

4116660

Description
DC DC CONVERTER +/-15V 20W
Catalog
DC DC Converters
DataSheet
JHM2048D15 PDF
Country of origin
-
Date code
-
ads
JHM2048D15 Specifications
Type Description
Series:JHM20 (20W)
Package:Box
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):36V
Voltage - Input (Max):75V
Voltage - Output 1:15V
Voltage - Output 2:-15V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):665mA, 665mA
Power (Watts):20 W
Voltage - Isolation:4 kV
Applications:Medical
Features:OCP, OTP, OVP, SCP, UVLO
Operating Temperature:-40°C ~ 80°C (With Derating)
Efficiency:88%
Mounting Type:Through Hole
Package / Case:6-DIP Module, 5 Leads
Size / Dimension:2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 886
Shipped from
HK warehouse
Expected Shipping Date
Apr 04 - Apr 08 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $57.0000 $57.00
5 $55.2900 $276.45
10 $53.5800 $535.80
25 $51.3000 $1 282.50
100 $47.8800 $4 788.00

Current price of JHM2048D15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
V300A24H400BL

V300A24H400BL

DC DC CONVERTER 24V 400W

TDN 3-4821WISM

TDN 3-4821WISM

DC DC CONVERTER +/-5V 3W

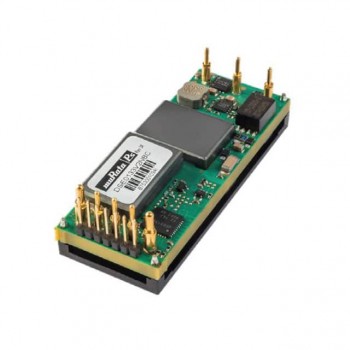

DSE0133V2NBC
