PT7713N

Part No :: PT7713N

Manufacturer: VIGOR

VIGOR # :: 4117504

Description: SWITCHING REGULATOR

Catalog: DC DC Converters

DataSheet: PT7713N PDF

Country of origin: -

Date code: -

PT7713N Specifications

Type	Description
Series:	Excalibur™ PT7713
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	3.6V
Voltage - Output 1:	1.8 ~ 2.55V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole, Vertical
Package / Case:	27-SIP Module, Vertical
Size / Dimension:	3.00" L x 0.66" W x 1.02" H (76.2mm x 16.8mm x 25.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT7744N Match 100%	VIGOR DC-DC BOOSTER MODULE	PT7713N vs PT7744N
PT7749N Match 85%	VIGOR DC-DC BOOSTER MODULE, 1 OUTPUT	PT7713N vs PT7749N
PT7712N Match 100%	VIGOR SWITCHING REGULATOR	PT7713N vs PT7712N
PT7714N Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.575V	PT7713N vs PT7714N

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1896

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$39.2500~~	~~$39.25~~

Current price of PT7713N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

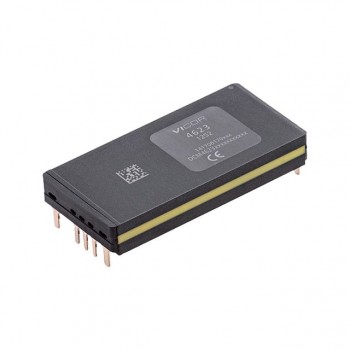

DCM4623TD2N04A1M00

DC DC CONVERTER 110W

VI-J13-IW

DC DC CONVERTER 24V 100W

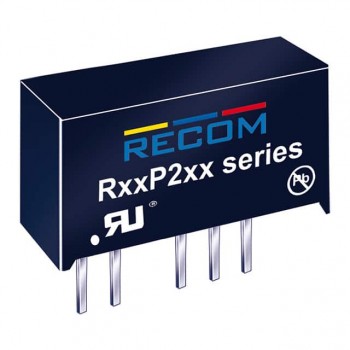

R15P209D/P/R8
