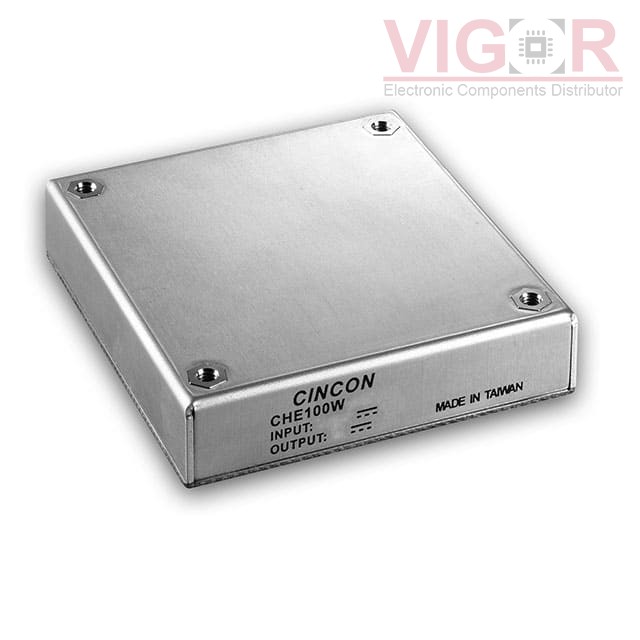

CHE100W-24S05

Part No :: CHE100W-24S05

Manufacturer: Cincon

VIGOR # :: 4117627

Description: DC DC CONVERTER 5V 100W

Catalog: DC DC Converters

DataSheet: CHE100W-24S05 PDF

Country of origin: -

Date code: -

CHE100W-24S05 Specifications

Type	Description
Series:	CHE100W (100W)
Package:	Tray
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	89.5%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	Half Brick
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
HAE100-24S05W Match 91%	P-Duke Technology, Inc. DC DC CONVERTER 5V 100W	CHE100W-24S05 vs HAE100-24S05W
RP100H-2405SRW/P-HC Match 95%	RECOM Power DC DC CONVERTER 5V 100W	CHE100W-24S05 vs RP100H-2405SRW/P-HC
RP100H-2405SRW/N-HC Match 95%	RECOM Power DC DC CONVERTER 5V 100W	CHE100W-24S05 vs RP100H-2405SRW/N-HC
RP100H-2405SRW/N Match 95%	RECOM Power DC DC CONVERTER 5V 100W	CHE100W-24S05 vs RP100H-2405SRW/N
CHE100W-24S05N Match 100%	Cincon DC DC CONVERTER 5V 100W	CHE100W-24S05 vs CHE100W-24S05N
RP100H-2405SRW/P Match 95%	RECOM Power DC DC CONVERTER 5V 100W	CHE100W-24S05 vs RP100H-2405SRW/P

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 179

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$138.0400~~	~~$138.04~~
5	~~$136.9403~~	~~$684.70~~
10	~~$135.8451~~	~~$1 358.45~~
25	~~$127.0808~~	~~$3 177.02~~
50	~~$122.6991~~	~~$6 134.96~~
100	~~$116.5640~~	~~$11 656.40~~

Current price of CHE100W-24S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
