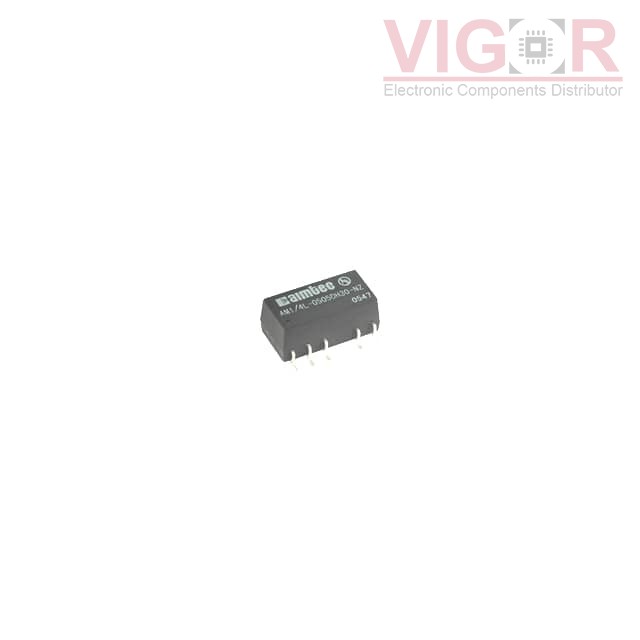

AM1/4L-0505SH30-NZ

Part No :: AM1/4L-0505SH30-NZ

Manufacturer: DComponents

VIGOR # :: 4118577

Description: DC DC CONVERTER 5V 250MW

Catalog: DC DC Converters

DataSheet: AM1/4L-0505SH30-NZ PDF

Country of origin: -

Date code: -

AM1/4L-0505SH30-NZ Specifications

Type	Description
Series:	AM1/4L-NZ (0.25W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	50mA
Power (Watts):	250 mW
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	64%
Mounting Type:	Surface Mount
Package / Case:	12-SMD Module, 10 Leads
Size / Dimension:	0.60" L x 0.44" W x 0.26" H (15.2mm x 11.2mm x 6.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R0.25S12-0505/HP-R Match 100%	RECOM Power DC DC CONVERTER 5V 250MW	AM1/4L-0505SH30-NZ vs R0.25S12-0505/HP-R
R0.25S12-0505/H-R Match 100%	RECOM Power DC DC CONVERTER 5V 250MW	AM1/4L-0505SH30-NZ vs R0.25S12-0505/H-R
R0.25S12-0505/HP Match 100%	RECOM Power DC DC CONVERTER 5V 250MW	AM1/4L-0505SH30-NZ vs R0.25S12-0505/HP
R0.25S12-0505/H Match 100%	RECOM Power DC DC CONVERTER 5V 250MW	AM1/4L-0505SH30-NZ vs R0.25S12-0505/H
R0.25S12-0505-R Match 86%	RECOM Power DC DC CONVERTER 5V 250MW	AM1/4L-0505SH30-NZ vs R0.25S12-0505-R
AM1/4L-0505SH30-NZTR Match 100%	DComponents DC DC CONVERTER 5V 250MW	AM1/4L-0505SH30-NZ vs AM1/4L-0505SH30-NZTR
