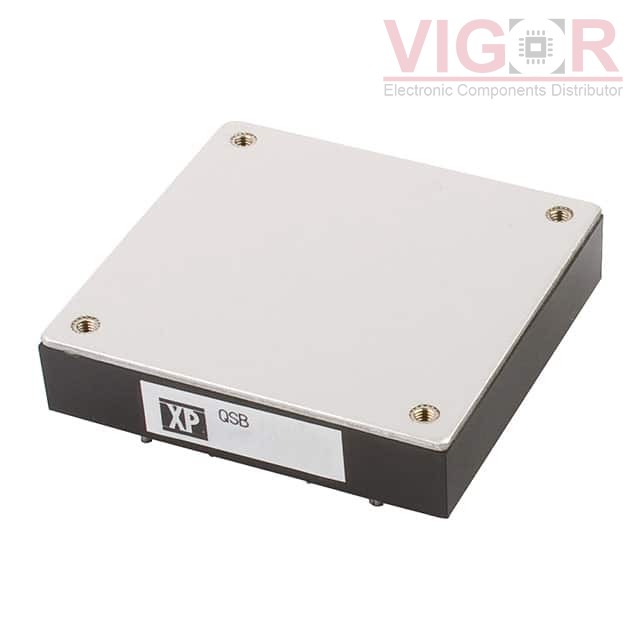

QSB20024S05

Part No :: QSB20024S05

Manufacturer: XP Power

VIGOR # :: 4119225

Description: DC DC CONVERTER 5V 200W

Catalog: DC DC Converters

DataSheet: QSB20024S05 PDF

Country of origin: -

Date code: -

QSB20024S05 Specifications

Type	Description
Series:	QSB (200W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	50A
Power (Watts):	200 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
QSB30024S05 Match 80%	XP Power DC DC CONVERTER 5V 300W	QSB20024S05 vs QSB30024S05
VHB200W-Q24-S5 Match 91%	CUI Inc. DC DC CONVERTER 5V 200W	QSB20024S05 vs VHB200W-Q24-S5
QSB20024S3V3 Match 64%	XP Power DC DC CONVERTER 3.3V 200W	QSB20024S05 vs QSB20024S3V3
QSB15024S05 Match 70%	XP Power DC DC CONVERTER 5V 150W	QSB20024S05 vs QSB15024S05
VHB200W-Q24-S3R3 Match 58%	CUI Inc. DC DC CONVERTER 3.3V 165W	QSB20024S05 vs VHB200W-Q24-S3R3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1649

Shipped from

HK warehouse

Expected Shipping Date

Jul 31 - Aug 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$170.0000~~	~~$170.00~~
5	~~$164.9000~~	~~$824.50~~
10	~~$159.8010~~	~~$1 598.01~~
25	~~$153.0004~~	~~$3 825.01~~

Current price of QSB20024S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
