JCA1005S15

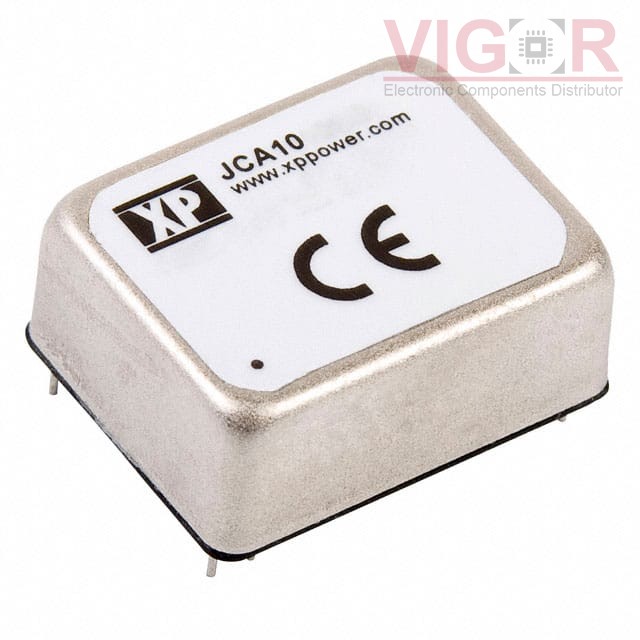

Product image
Product thumb
Part No :

JCA1005S15

Manufacturer
XP Power
VIGOR # :

4120233

Description
DC DC CONVERTER 15V 10W
Catalog
DC DC Converters
DataSheet
JCA1005S15 PDF
Country of origin
-
Date code
-
ads
JCA1005S15 Specifications
Type Description
Series:JCA (10W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):9V
Voltage - Output 1:15V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):660mA
Power (Watts):10 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:OCP, OVP, SCP, UVLO
Operating Temperature:-40°C ~ 100°C
Efficiency:86%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 7 Leads
Size / Dimension:1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:62368-1
Alternative Products
Part Number Manufacturer & Description Compare
JCA1005S12 Match 71%
XP Power
DC DC CONVERTER 12V 10W
 JCA1005S15 vs JCA1005S12
JCD0605S12 Match 52%
XP Power
DC DC CONVERTER 12V 6W
 JCA1005S15 vs JCD0605S12
JCA0605S12 Match 53%
XP Power
DC DC CONVERTER 12V 6W
 JCA1005S15 vs JCA0605S12
JCD0605S15 Match 63%
XP Power
DC DC CONVERTER 15V 6W
 JCA1005S15 vs JCD0605S15
JCA0605S15 Match 64%
XP Power
DC DC CONVERTER 15V 6W
 JCA1005S15 vs JCA0605S15
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 441
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $34.0000 $34.00
5 $32.9800 $164.90
10 $31.9600 $319.60
25 $30.6000 $765.00
100 $28.7300 $2 873.00

Current price of JCA1005S15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
