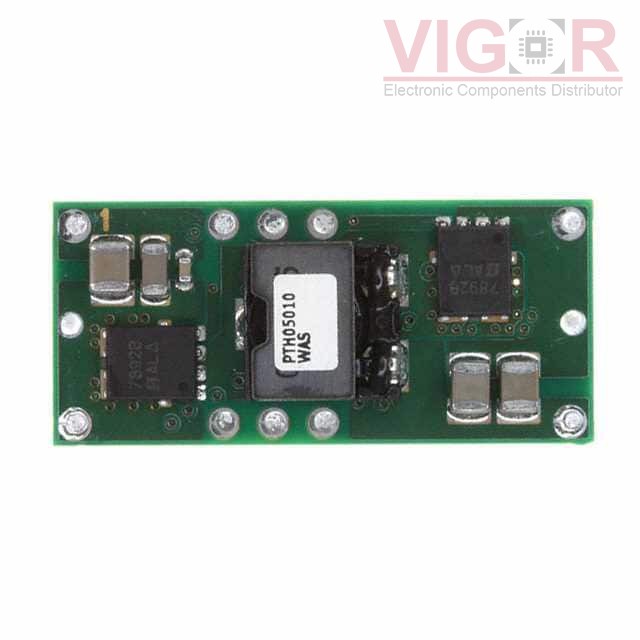

PTH05010WAS

Part No :: PTH05010WAS

Manufacturer: Texas Instruments

VIGOR # :: 4120294

Description: DC DC CONVERTER 0.8-3.6V 54W

Catalog: DC DC Converters

DataSheet: PTH05010WAS PDF

Country of origin: -

Date code: -

PTH05010WAS Specifications

Type	Description
Series:	PTH05010W
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.8 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	15A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	95%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	1.37" L x 0.62" W x 0.38" H (34.8mm x 15.8mm x 9.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH05010WAST Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 54W	PTH05010WAS vs PTH05010WAST
PTH05010WAZ Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 54W	PTH05010WAS vs PTH05010WAZ
PTH05010YAZ Match 100%	Texas Instruments DC DC CONVERTER 0.55-1.8V	PTH05010WAS vs PTH05010YAZ
PMG5518TSR Match 100%	Flex Power Modules DC DC CONVERTER 0.8-3.3V 50W	PTH05010WAS vs PMG5518TSR
PTH05010WAZT Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 54W	PTH05010WAS vs PTH05010WAZT
NKS1000P12S05 Match 68%	NetPower Corporation 4.5-14VIN, 0.59-5.5V 12A POL	PTH05010WAS vs NKS1000P12S05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 158

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$17.5400~~	~~$17.54~~
10	~~$17.2712~~	~~$172.71~~
25	~~$17.0012~~	~~$425.03~~
100	~~$14.8424~~	~~$1 484.24~~
500	~~$14.3566~~	~~$7 178.30~~

Current price of PTH05010WAS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
