DPU01L-05

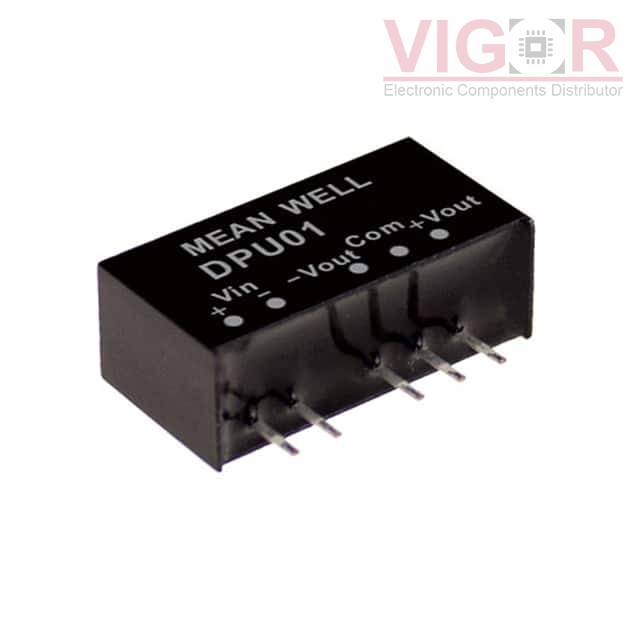

Image is for reference,
please contact us to get the real picture

Part No :: DPU01L-05

Manufacturer: MEAN WELL

Description: DC DC CONVERTER +/-5V 1W

Catalog: DC DC Converters

DataSheet: DPU01L-05 PDF

Availability: 759 pieces

Unit Price: ~~$3.03000~~

Current price of DPU01L-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DPU01L-05 Specifications

Type	Description
Series:	DPU01 (1W)
Package:	-
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 90°C (With Derating)
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	6-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm)
Supplier Device Package:	6-SIP
Control Features:	-
Approval Agency:	-
Standard Number:	-
