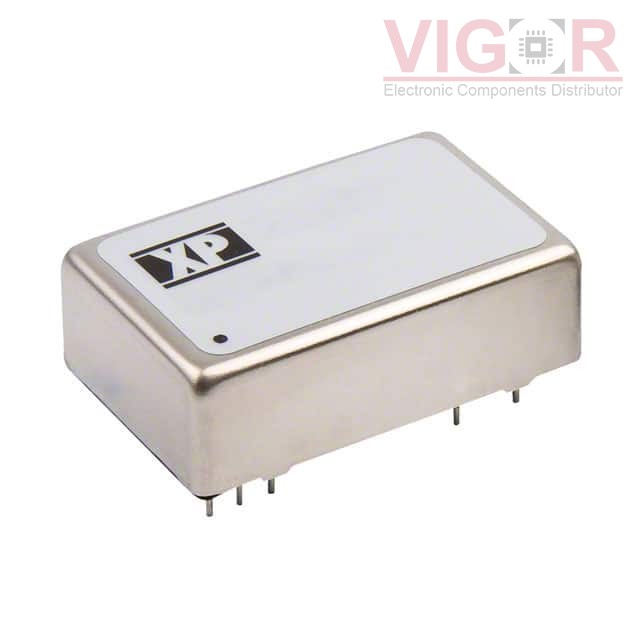

JCG1248S05

Part No :: JCG1248S05

Manufacturer: XP Power

VIGOR # :: 4121651

Description: DC DC CONVERTER 5V 12W

Catalog: DC DC Converters

DataSheet: JCG1248S05 PDF

Country of origin: -

Date code: -

JCG1248S05 Specifications

Type	Description
Series:	JCG (12W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.4A
Power (Watts):	12 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JCG1548S05 Match 82%	XP Power DC DC CONVERTER 5.1V 15W	JCG1248S05 vs JCG1548S05
JTF1248S05 Match 100%	XP Power DC DC CONVERTER 5V 12W	JCG1248S05 vs JTF1248S05
JTF1548S05 Match 82%	XP Power DC DC CONVERTER 5.1V 15W	JCG1248S05 vs JTF1548S05
JTF1048S3V3 Match 54%	XP Power DC DC CONVERTER 3.3V 10W	JCG1248S05 vs JTF1048S3V3
JTF0848S05 Match 68%	XP Power DC DC CONVERTER 5V 8W	JCG1248S05 vs JTF0848S05
JTF1048S05 Match 87%	XP Power DC DC CONVERTER 5V 10W	JCG1248S05 vs JTF1048S05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 834

Shipped from

HK warehouse

Expected Shipping Date

Sep 08 - Sep 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$28.2000~~	~~$28.20~~
10	~~$28.2000~~	~~$282.00~~

Current price of JCG1248S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
